Attributes
| Model Number | H1006 |
|---|---|
| Gtin | 47077520031 |
Description

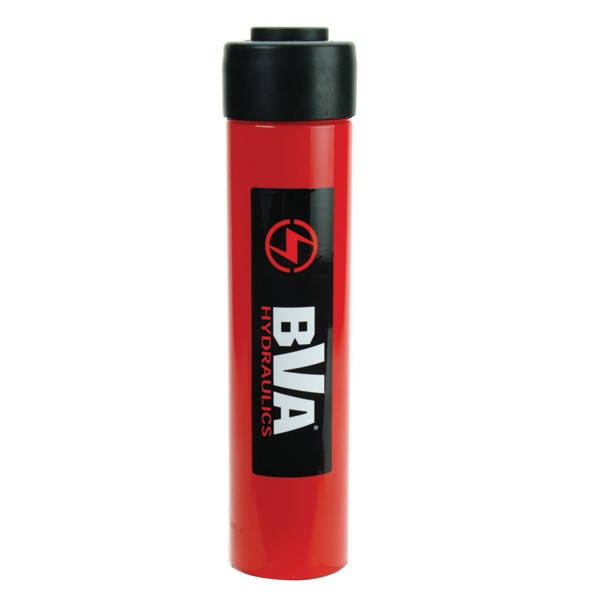

BVA Hydraulics General Cylinder works at max. 10000 psi (700 bar), manufacturing in solid one piece alloy steel body,using polyurethane U-cup seals to provide a sure seal and longer life. Our standard hard chrome plated piston rod protects against corrosion & damage; one piece aluminum alloy bearing protects against cylinder wall damage. Collar threads and base mounting holes are for fixuring. All BVA cylinders come equiped with CH38F high flow coupler with dust cap for better protection.
Specifications
| System | Single Acting |
|---|---|
| Usage | General |
| Stroke (in) | 5.94 |
| Material | Steel |
| Capacity (ton) | 10 |
| Collapse height (in) | 9.84 |
| Extended height (in) | 15.78 |
| Intpressure at capacity (psi) | 8928 |
| Cylinder bore (in) | 1.69 |
| Outside Dia. (in) | 2.26 |
| Rod Dia. (in) | 1.49 |
| Saddle Dia. (in) | 1.38 |
| Collar Thread | 2¼”-14 |
| Collar Thread Length (in) | 1.18 |
| Rod Internal Thread | 1”-8UNC |
| Road thread length (in) | 0.79 |
| Mounting thread (in) | ”-18UNC |
