Attributes
| Model Number | HDG50002 |
|---|---|
| Gtin | 47077816578 |
Description

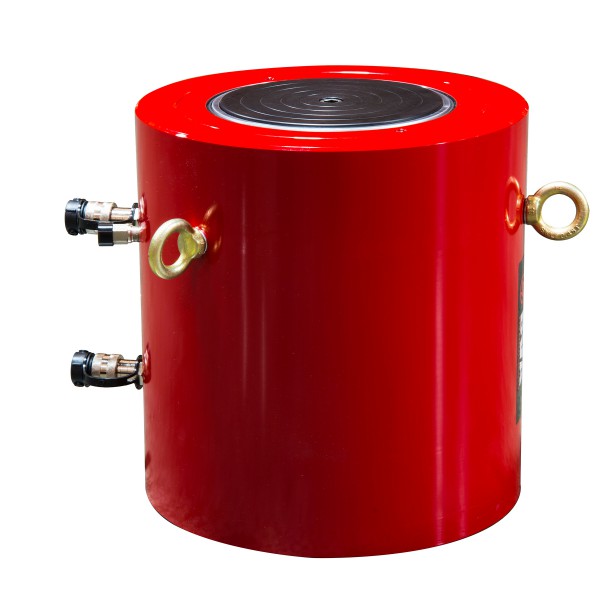

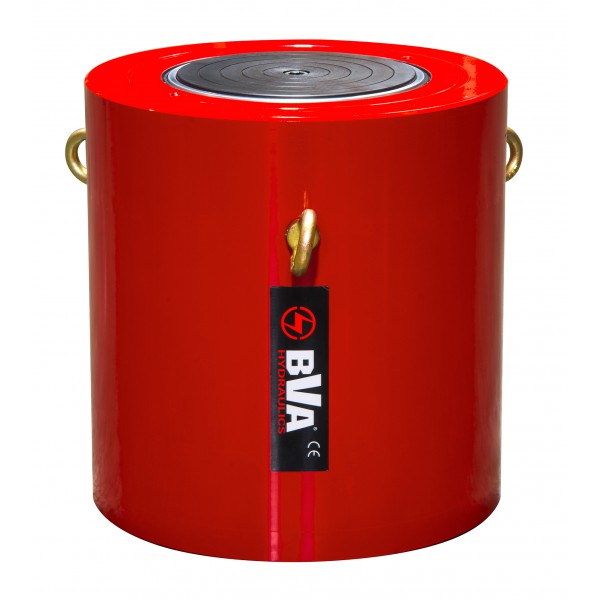

BVA Hydraulics High Tonnage Double Acting Cylinder works at max. 10,000 psi (700bar), constructed in high strength steel from gun drilled solid bar provides extra combined strength for high tonnage application. Rod wiper seals out dirt and contamination. Cylinders are burnish rolled creating a smoother finish than honing. Base mounting holes on all models. All BVA cylinders come equipped with a CH38F high flow coupler with dust cap. And custom sizes available upon request.
Specifications
| System | Double Acting |
|---|---|
| Usage | High Tonnage |
| Stroke (in) | 1.97 |
| Material | Steel |
| Capacity (ton) | 500 |
| Collapse height (in) | 16.5 |
| Extended height (in) | 18.46 |
| Cylinder bore (in) | 12.01 |
| Outside Dia. (in) | 15.75 |
| Rod Dia. (in) | 9.76 |
| Saddle Dia. (in) | 8.98 |
| Mounting thread (in) | M24 |
