Attributes
| Model Number | HL3002 |
|---|---|
| Gtin | 47077560020 |
Description

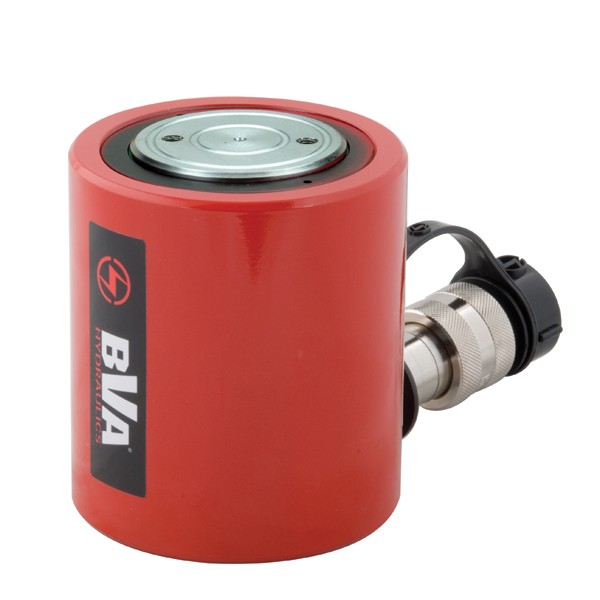

BVA Hydraulics Low Profile Cylinders work at max. 10,000 psi (700bar), design in compact for use in confined spaces. Rod wiper helps seal out dirt and contamination, equiped with special return springs provide quick retraction and extend the service life. Hard chrome plated piston rod helps prevent scratching and corrosion. Rod end is grooved to reduce load slippage. All BVA cylinders come equipped with a CH38F high flow coupler with dust cap.
Specifications
| System | Single Acting |
|---|---|
| Usage | Low Profile |
| Stroke (in) | 2.44 |
| Material | Steel |
| Capacity (ton) | 30 |
| Collapse height (in) | 4.61 |
| Extended height (in) | 7.05 |
| Intpressure at capacity (psi) | 9245 |
| Cylinder bore (in) | 2.87 |
| Outside Dia. (in) | 4 |
| Rod Dia. (in) | 2.5 |
| Mounting thread (in) | M5 x 0.8 |
