Attributes
| Model Number | HLN10012 |
|---|---|
| Gtin | 47077800010 |
Description

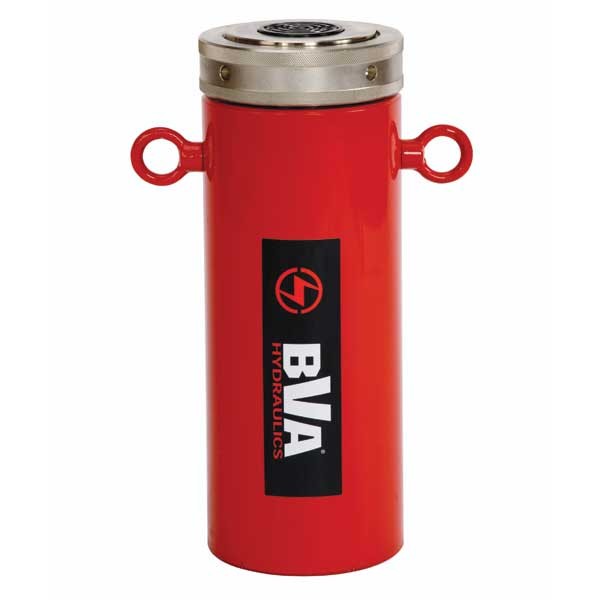

BVA Hydraulics Lock Nut Cylinders work at max. 10,000 psi (700bar), designed in single acting with mechanical safety lock nut, supporting loads without hydraulic pressure, and applying load return. Overflow port prevents cylinders from over travel. Solid steel body & electroless nickel plated rod to resist corrosion and rust. All BVA cylinders come equipped with a CH38F high flow coupler with dust cap.
Specifications
| System | Single Acting |
|---|---|
| Usage | Lock Nut |
| Stroke (in) | 11.81 |
| Material | Steel |
| Capacity (ton) | 100 |
| Collapse height (in) | 17.2 |
| Extended height (in) | 29 |
| Intpressure at capacity (psi) | 9723 |
| Cylinder bore (in) | 5.1 |
| Outside Dia. (in) | 6.5 |
| Saddle Dia. (in) | 2.8 |
