Attributes
| Model Number | H1502 |
|---|---|
| Gtin | 47077530207 |
Description

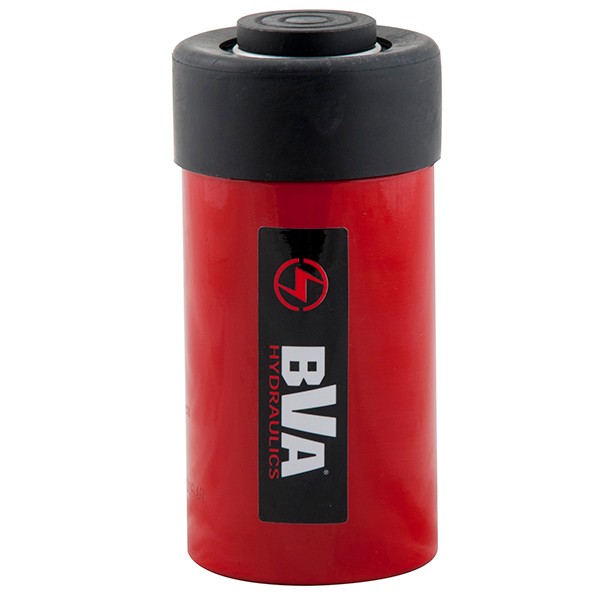

BVA Hydraulics General Cylinder works at max. 10000 psi (700 bar), manufactured in a solid one-piece alloy steel body, using polyurethane U-cup seals to provide a sure seal and longer life. Our standard hard chrome plated piston rod protects against corrosion & damage; one-piece aluminum alloy bearing protects against cylinder wall damage. Collar threads and base mounting holes are for fixturing. All BVA cylinders come equipped with CH38F high-flow coupler with a dust cap for better protection. The BVA Hydraulics General Cylinder H1502 compares with the Enerpac RC152 and the Power Team C152C.
Specifications
| System | Single Acting |
|---|---|
| Usage | General |
| Stroke (in) | 2.01 |
| Material | Steel |
| Capacity (ton) | 15 |
| Collapse height (in) | 5.87 |
| Extended height (in) | 7.88 |
| Intpressure at capacity (psi) | 9554 |
| Cylinder bore (in) | 2 |
| Outside Dia. (in) | 2.75 |
| Rod Dia. (in) | 1.63 |
| Saddle Dia. (in) | 1.5 |
| Collar Thread | 2¾”-16 |
| Collar Thread Length (in) | 1.18 |
| Rod Internal Thread | 1”-8UNC |
| Road thread length (in) | 0.98 |
| Mounting thread (in) | ⅜”-16UNC |
PDF Documents
OM_US_SIngle Acting Cylinders 5-30 Ton - Instruction Manual - US
Open PDF
