Attributes
| Model Number | HC1202T |
|---|---|
| Gtin | 47077798621 |
Description

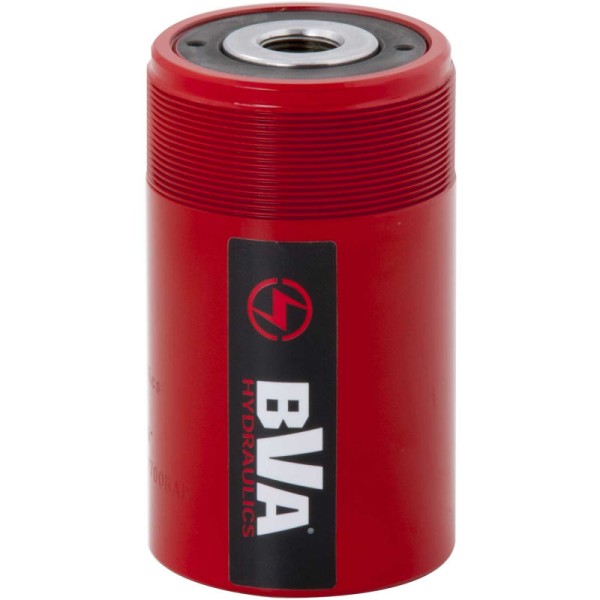

BVA Hydraulics Hollow Hole Single Acting Cylinders work at max. 10,000 psi (700bar), equipped heavy duty compression spring, dual wipers help prevent contamination, and go with collar thread protector. Ideal for pulling and pushing applications. All BVA cylinders come equipped with a CH38F high flow coupler with dust cap.
Specifications
| System | Single Acting |
|---|---|
| Usage | Hollow Hole |
| Stroke (in) | 1.61 |
| Material | Steel |
| Capacity (ton) | 12 |
| Collapse height (in) | 4.74 |
| Extended height (in) | 6.36 |
| Intpressure at capacity (psi) | 8236 |
| Cylinder bore (in) | 1.92 |
| Outside Dia. (in) | 2.76 |
| Mounting thread (in) | 5/16″-18UNC |
| Internal Thread Length (in) | 0.63 |
| Internal Dia. Mounting (in) | 0.77 |
| Outside Dia. Mounting (in) | 1.38 |
