Attributes
| Model Number | HP0205 |
|---|---|
| Gtin | 47077550304 |
Description

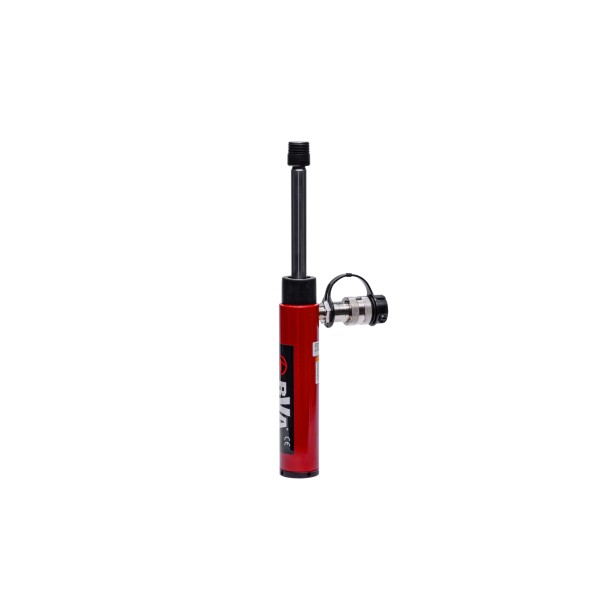

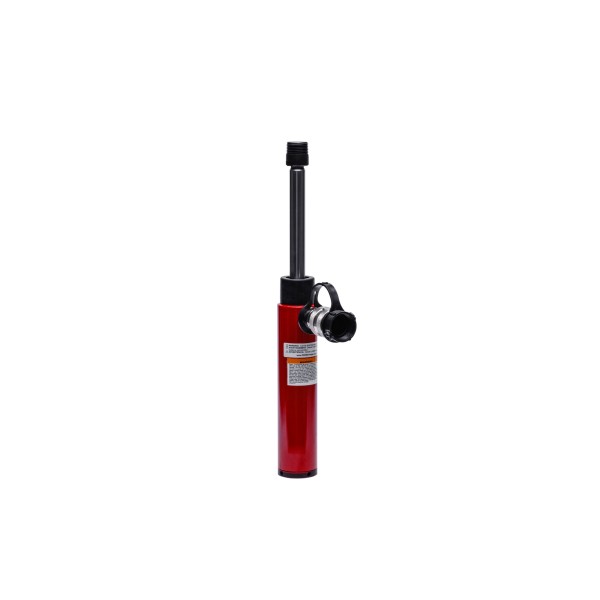

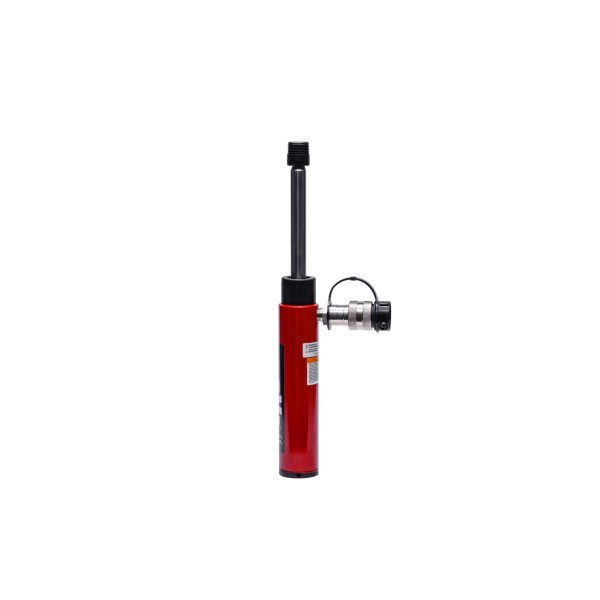

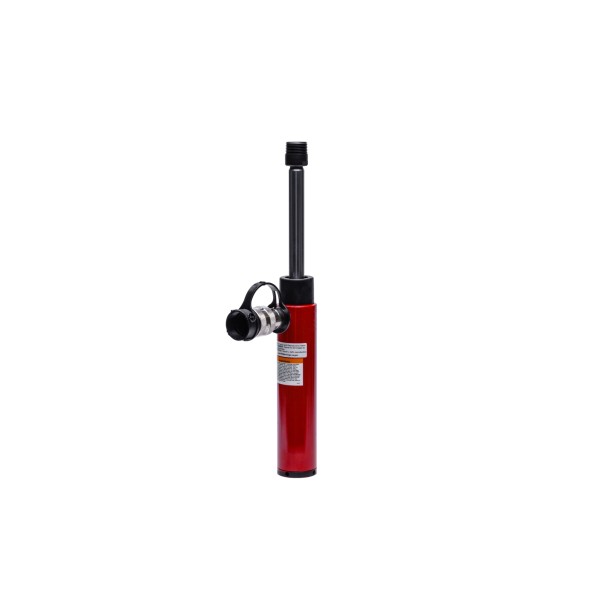

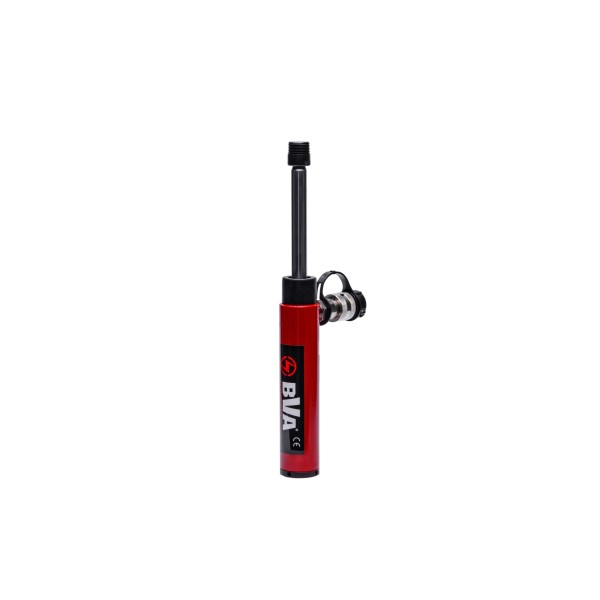

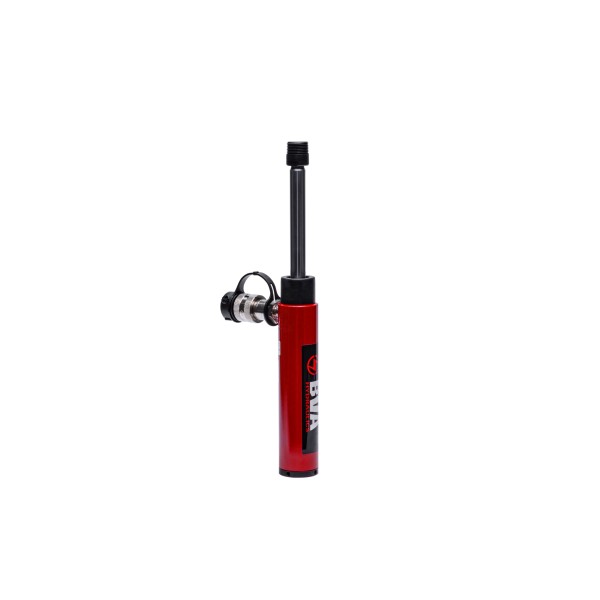

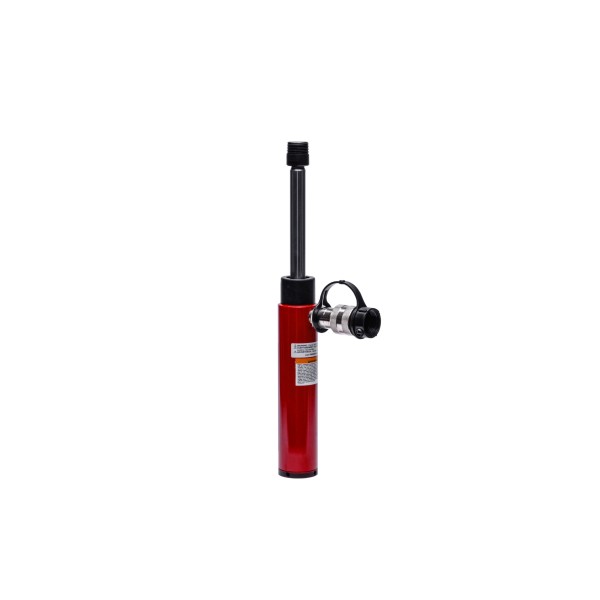

BVA Hydraulics Pull Cylinders work at max. 10,000 psi (700bar), constructed in high strength steel, one piece high grade alloy bearing for side load protection and longer service life. Polyurethane cup seal provides ooptimum performance. External rod threads and internal base threads are more user friendly. Ideal for pulling and tensioning application. All BVA cylinders come equipped with a CH38F high flow coupler with dust cap.
Specifications
| System | Single Acting |
|---|---|
| Usage | Precision |
| Stroke (in) | 5 |
| Material | Steel |
| Capacity (ton) | 2.5 |
| Collapse height (in) | 10.55 |
| Extended height (in) | 15.55 |
| Cylinder bore (in) | 1.13 |
| Outside Dia. (in) | 1.89 |
| Rod Dia. (in) | 0.75 |
| Collar Thread | 1½˝-16UN |
| Collar Thread Length (in) | 0.98 |
| Rod Internal Thread | M16 x 1.5 |
| Road thread length (in) | 0.76 |
| Mounting thread (in) | ¾˝-14NPTF |
