Attributes
| Model Number | HT1006 |
|---|---|
| Gtin | 47077520154 |
Description

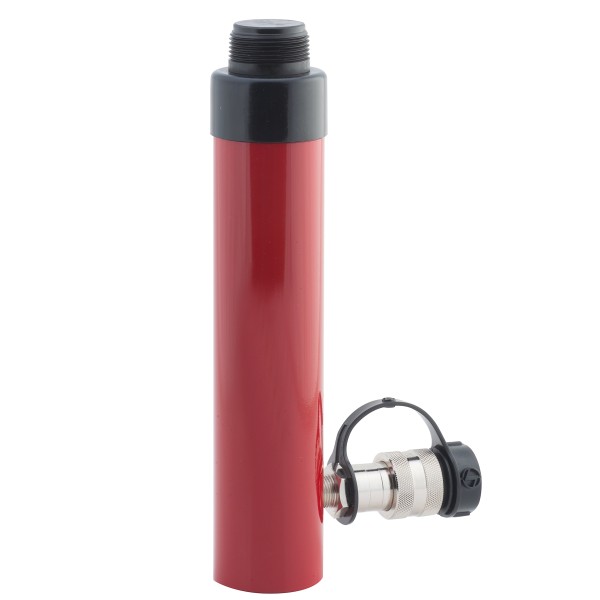

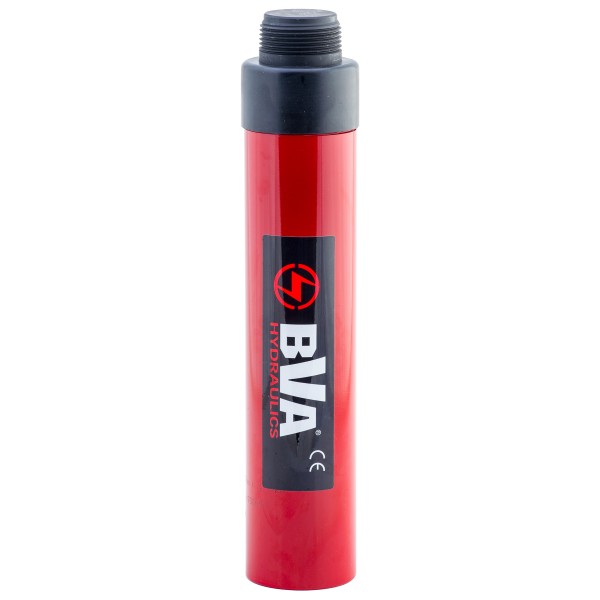

BVA Hydraulics Threaded Single Acting Cylinders work at max. 10,000 psi (700bar), are ideal for frame pulling machines, equipped with threaded rod and base. Removable threaded rod adapter used to attach accessories to rod end and base, using spring return for faster retraction. All BVA cylinders come equipped with a CH38F high flow coupler with dust cap
Specifications
| System | Single Acting |
|---|---|
| Usage | Threaded |
| Stroke (in) | 5.95 |
| Material | Steel |
| Capacity (ton) | 10 |
| Collapse height (in) | 11.46 |
| Extended height (in) | 17.41 |
| Intpressure at capacity (psi) | 8928 |
| Outside Dia. (in) | 2.26 |
| Rod Dia. (in) | 1.49 |
| Collar Thread | 2.25”-14UN |
| Collar Thread Length (in) | 1.13 |
| Rod Internal Thread | 1.25” -11.5 NPSM |
