Attributes
| Model Number | P352 |
|---|---|
| Gtin | 047077989210 |
Description

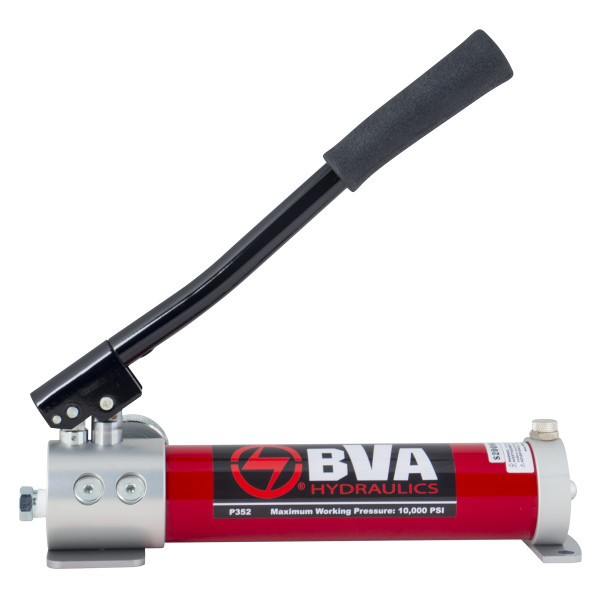

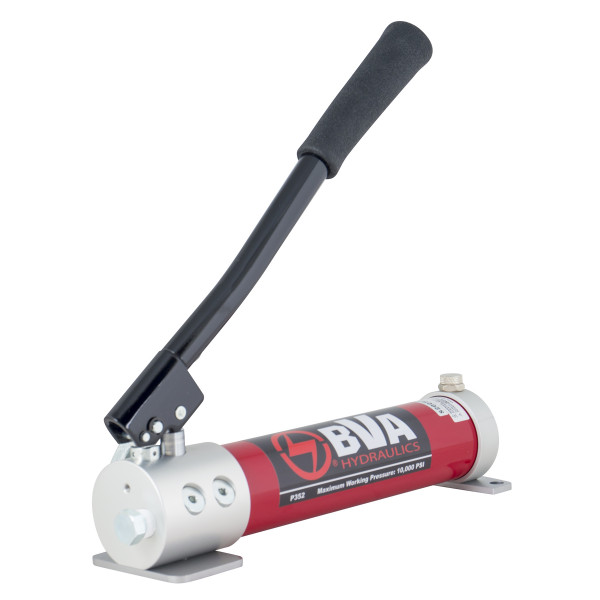

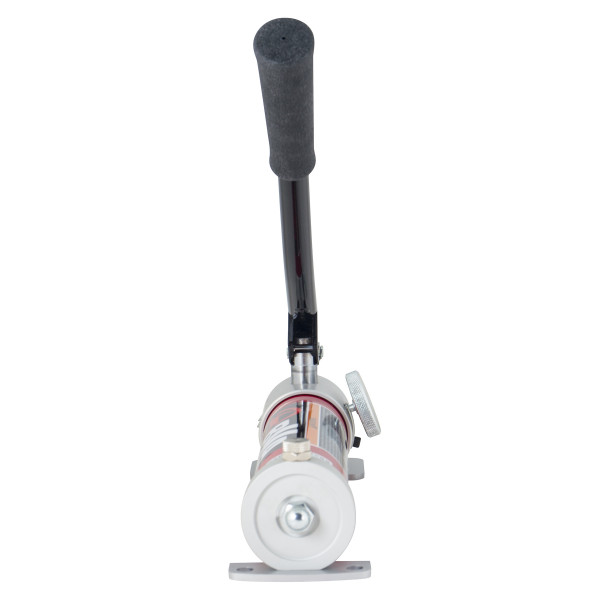

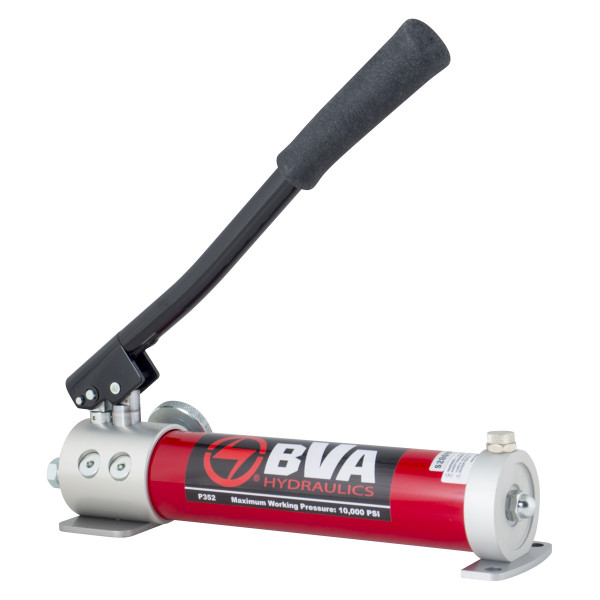

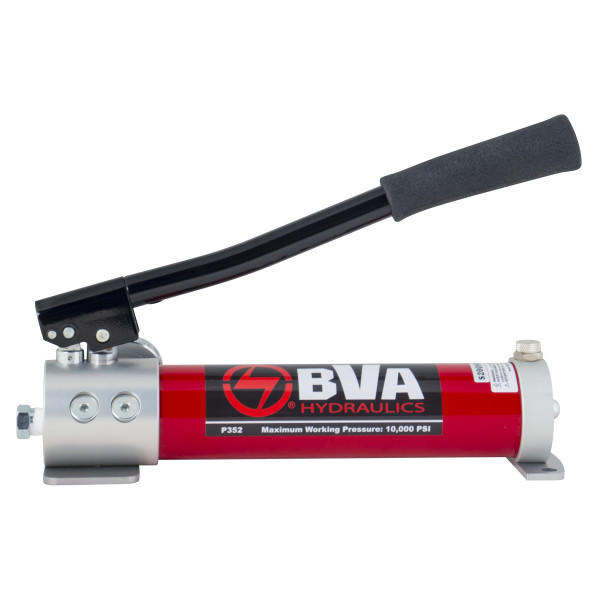

BVA Hydraulics 2 speed hand pumps work at max. 10,000 psi, equip with internal relief valve for overload protection, and lightweight aluminum alloy reservoir for easy handling. Good for use with cylinders, hydraulic tools and OEM applications. attached with metal heavy duty vent screw, provides the pump for longer working life.
Specifications
| System | Single Acting |
|---|---|
| Mode | Hand Pump |
| Material | Aluminum |
| Oil capacity (in3) | 21.4 |
| Oil disp/stroke (in3) | 0.15 |
| Piston stroke (in3) | 0.38 |
| Operating force (lbs) | 88 |
| Reservoir material | Aluminum |
| Oil outlet port | 3/8"-18 NPTF |
| Weight (lbs) | 6.5 |
PDF Documents
P352-M0_102021 - Instruction Manual - US
Open PDF
