Attributes
| Model Number | P601S |
|---|---|
| Gtin | 047077550274 |
Description

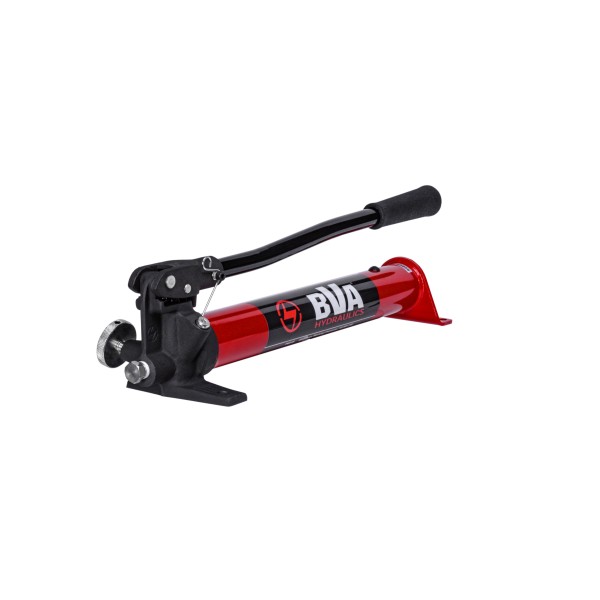

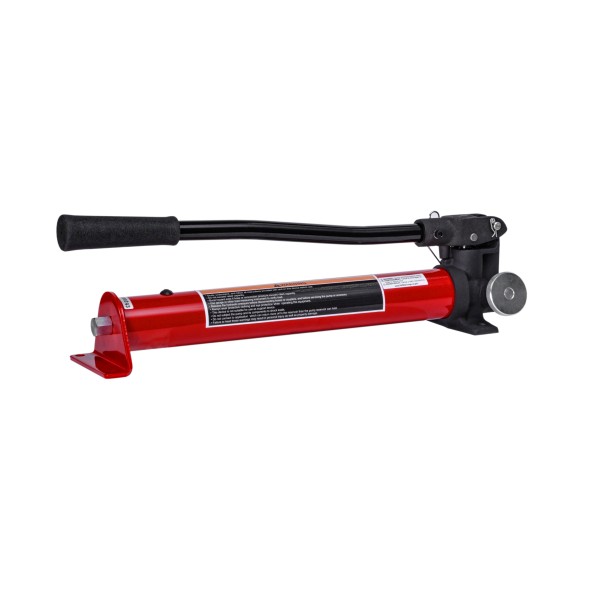

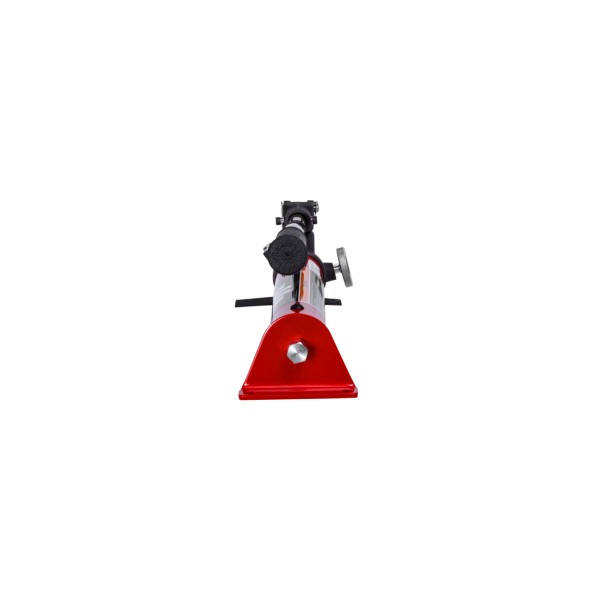

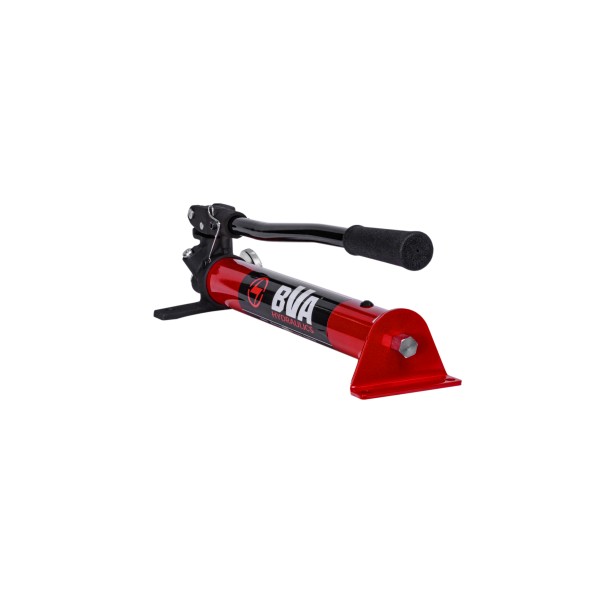

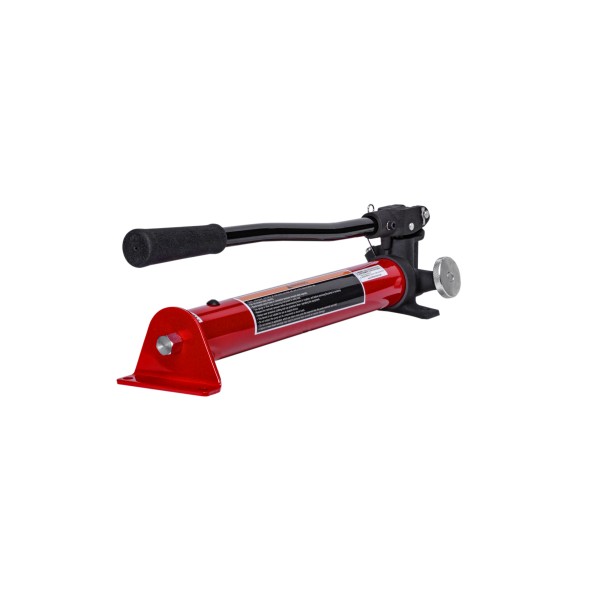

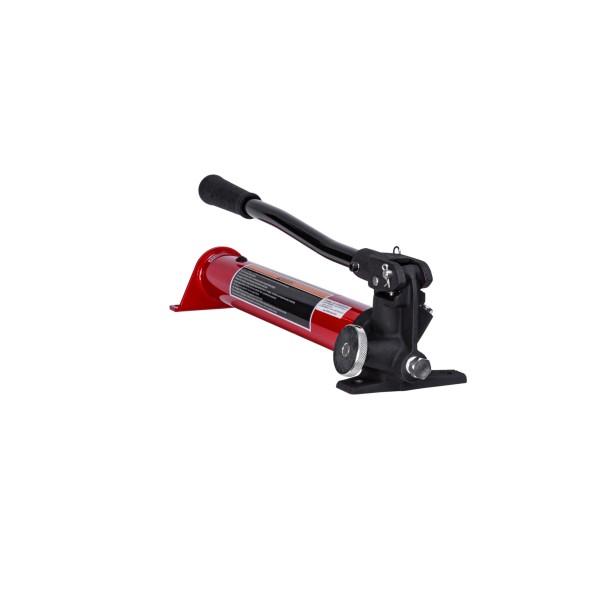

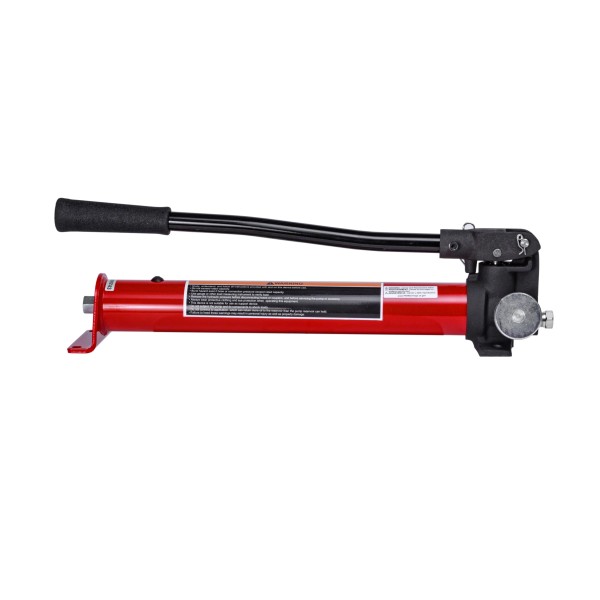

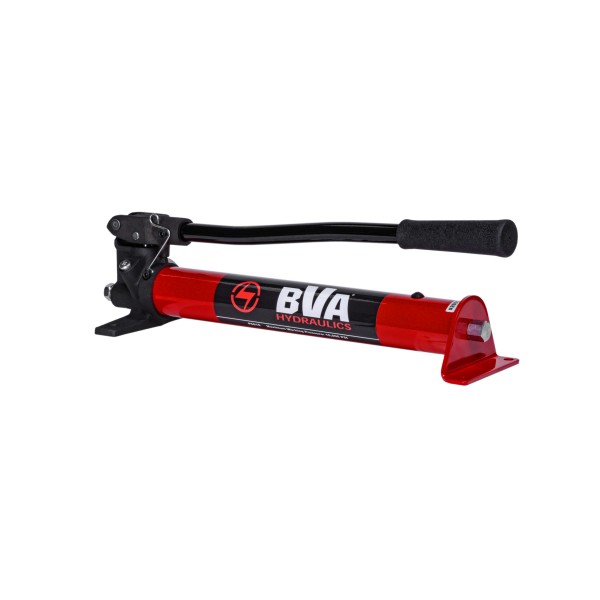

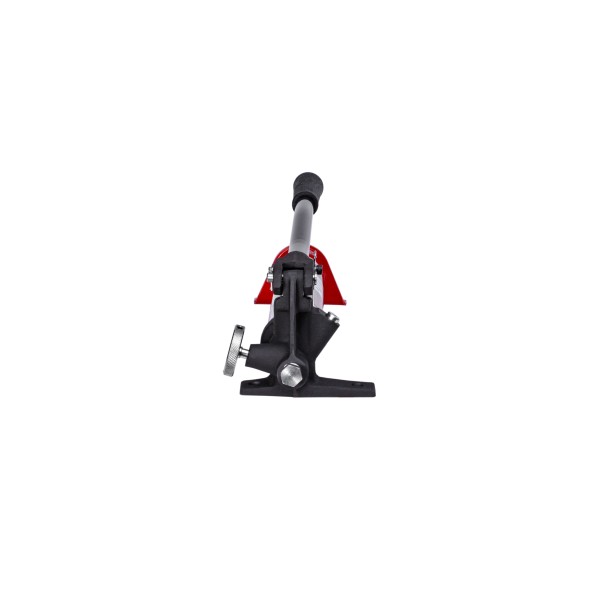

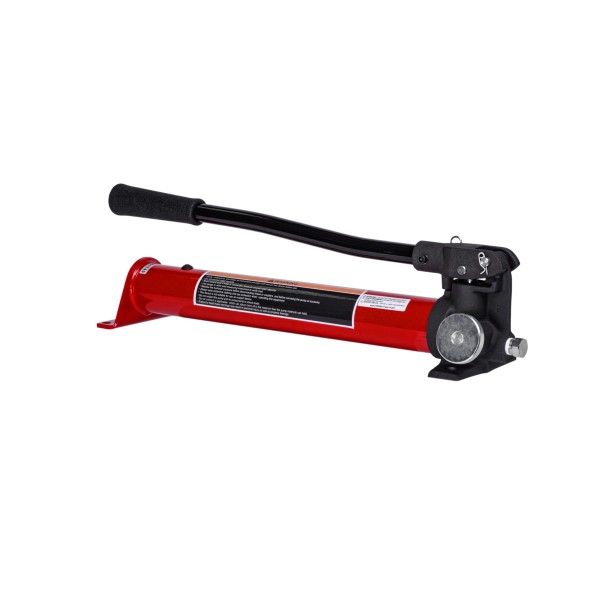

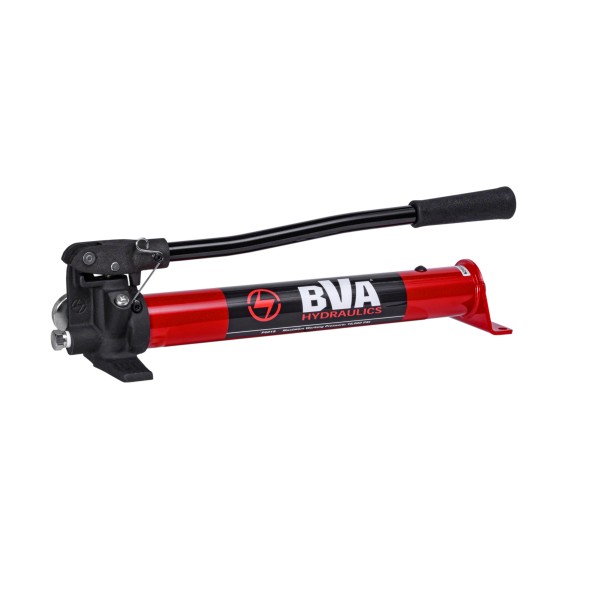

BVA Hydraulics 1 speed hand pumps work at max. 10,000 psi, equip with internal relief valve for overload protection, and metal reservoir resist cracking, designed to reduce user fatigue & increase productivity. Good for use with cylinders, hydraulic tools and OEM applications.
Specifications
| System | Single Acting |
|---|---|
| Mode | Hand Pump |
| Material | Steel |
| Oil capacity (in3) | 37 |
| Oil disp/stroke (in3) | 0.15 |
| Piston stroke (in3) | 0.79 |
| Operating force (lbs) | 109 |
| Reservoir material | Steel |
| Oil outlet port | 3/8"-18 NPTF |
| Weight (lbs) | 12.98 |
PDF Documents
P601S-M0_022021 - Instruction Manual - US
Open PDF
