Attributes
| Model Number | P8701M |
|---|
Description

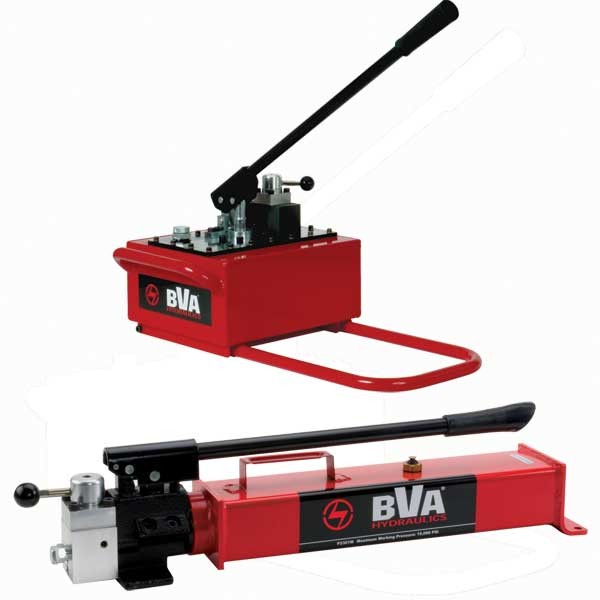

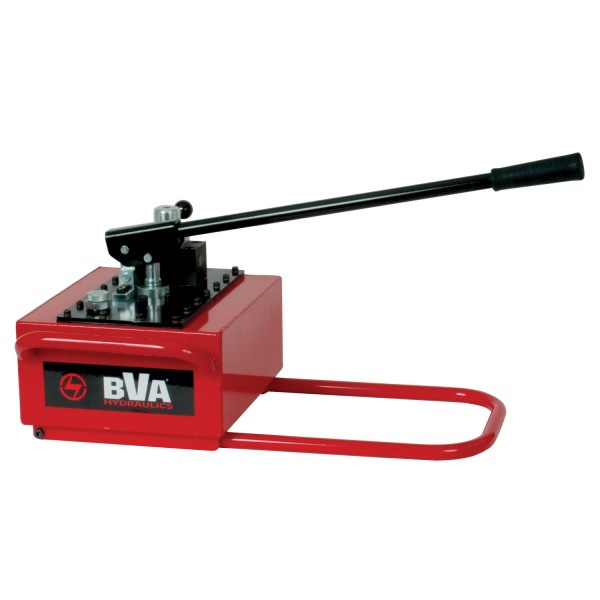

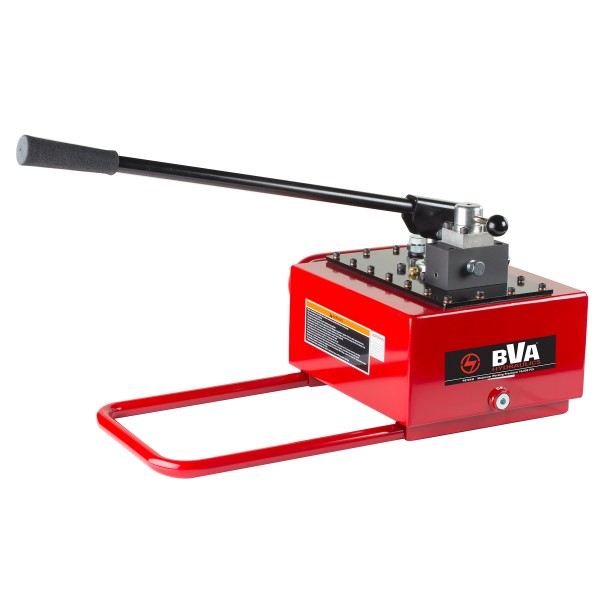

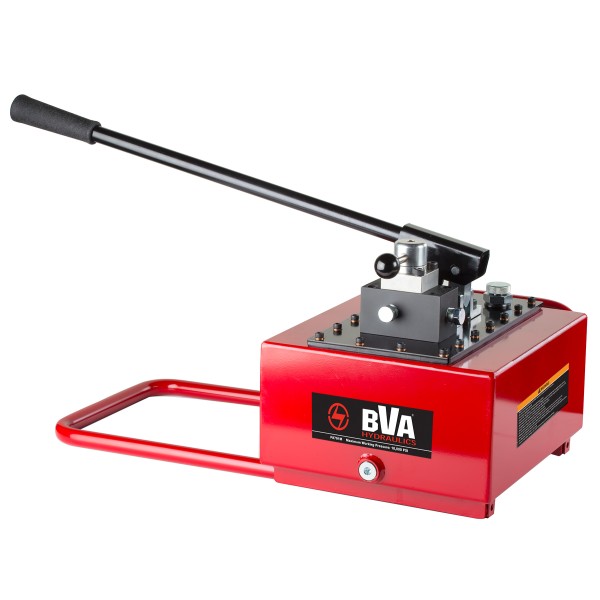

BVA Hydraulics 2 speed hand pumps work at max. 10,000 psi, equip with internal relief valve for overload protection, and metal reservoir resist cracking, designed to reduce user fatigue & increase productivity. Good for use with cylinders, hydraulic tools and OEM applications.
Specifications
| System | Double Acting |
|---|---|
| Mode | Hand Pump |
| Material | Steel |
| Oil capacity (in3) | 476 |
| Oil disp/stroke (in3) | 0.29 |
| Piston stroke (in3) | 1.69 |
| Operating force (lbs) | 143 |
| Reservoir material | Steel |
| Valve function | Advance/Neutral /Return |
| Oil outlet port | 3/8"-18 NPTF |
| Weight (lbs) | 77.4 |
PDF Documents
OM_US_P8701_P8701M - Instruction Manual - US
Open PDF
