Attributes
| Model Number | PARD1701 |
|---|---|
| Gtin | 047077800065 |
Description

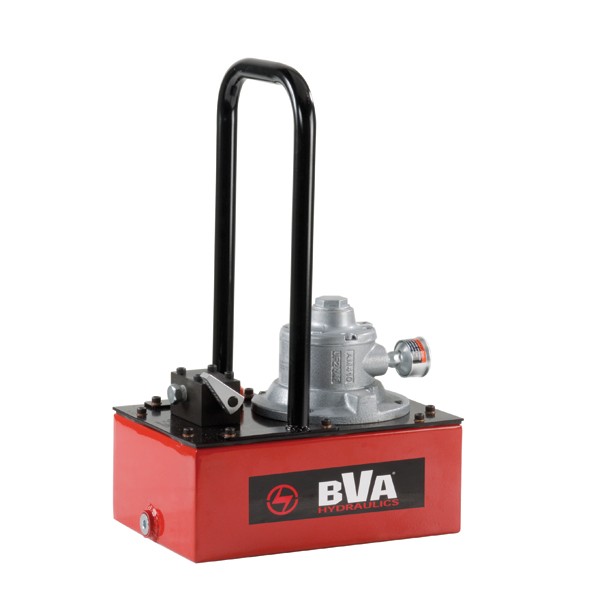

BVA Hydraulics air pump works at max. 10,000 psi (700 bar), 1 Gal. Usable Oil, 2W/2P Dump Valve, with a compact yet powerful rotary air motor, will hold hydraulic pressure if air is disconnected.
Specifications
| System | Single Acting |
|---|---|
| Usage | General |
| Mode | Rotary Air Pump |
| Material | Steel |
| Oil capacity (in3) | 231 |
| Oil disp/stroke (in3) | 22 |
| Reservoir material | Steel |
| Valve | Dump |
| Valve function | Advance/Return |
| Air pressure range (psi) | 60 ~ 80 |
| Air consumption (in3) | 44 |
| Oil outlet port | 3/8"-18 NPTF |
| Air inlet port | 1/2" NPT |
| Motor (hp) | 1.7 |
| Weight (lbs) | 32.12 |
