Attributes
| Model Number | PA1500 |
|---|---|
| Gtin | 047077550045 |
Description

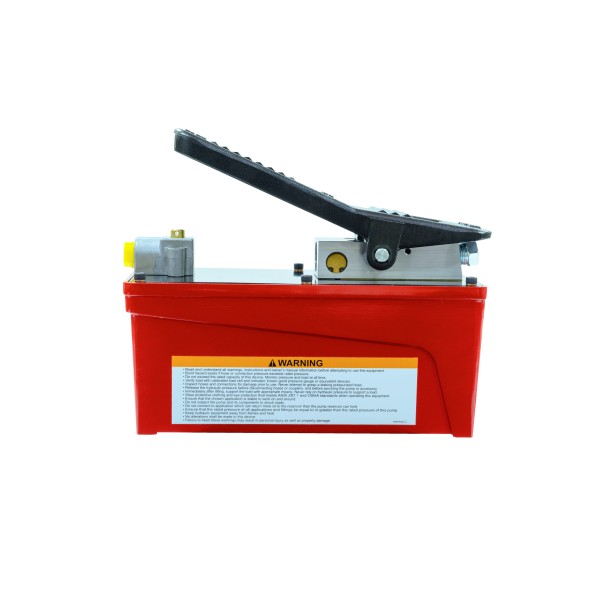

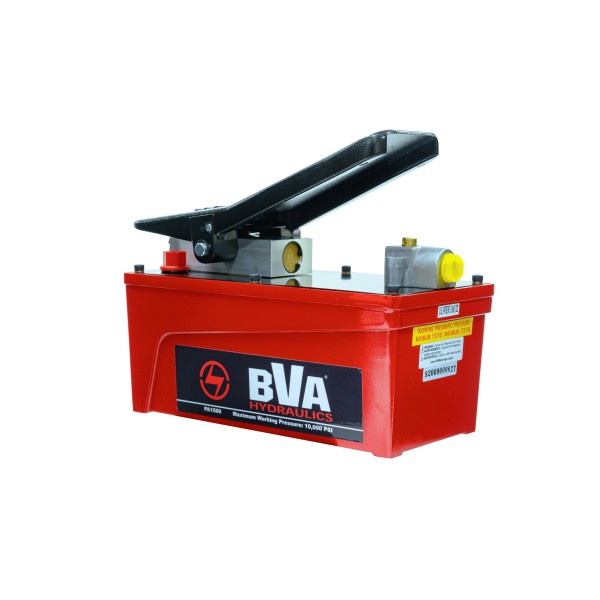

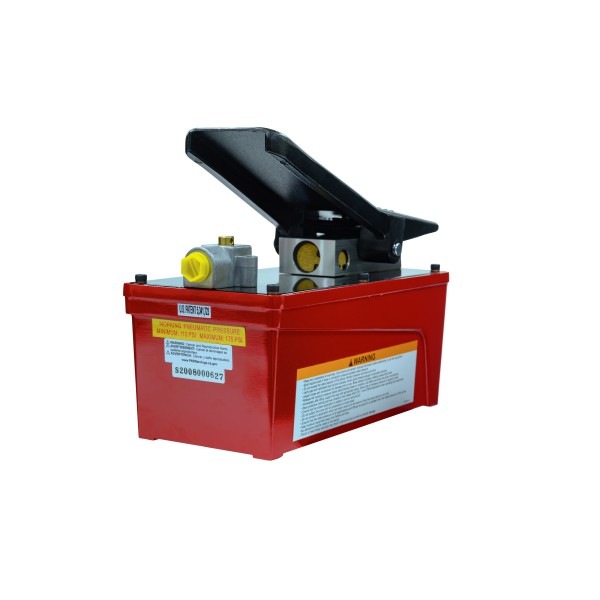

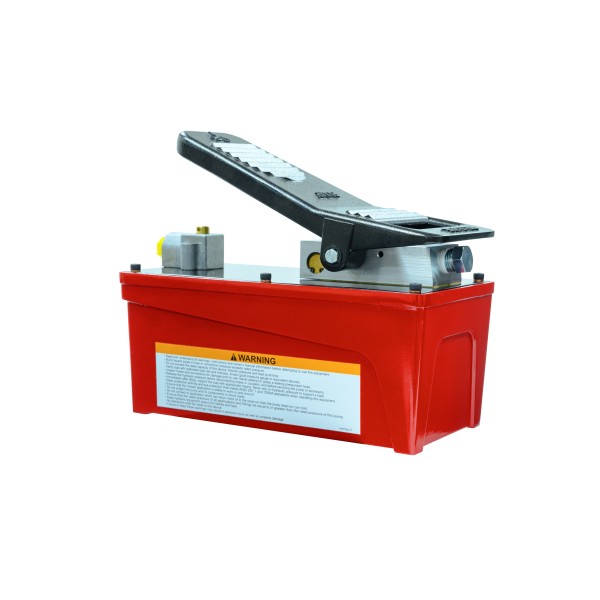

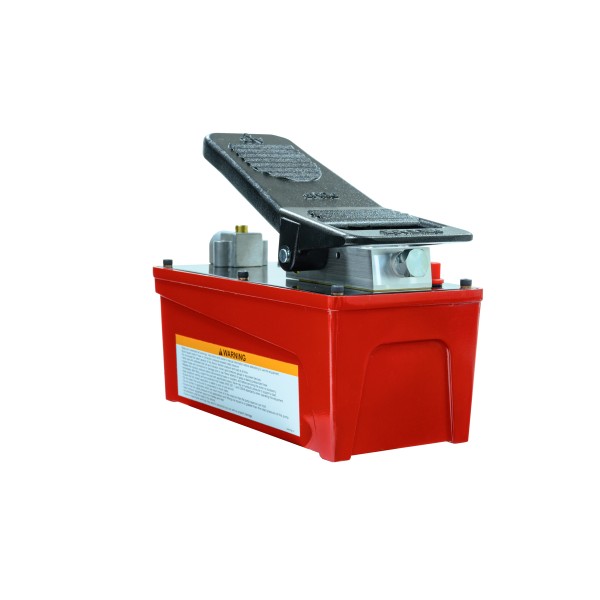

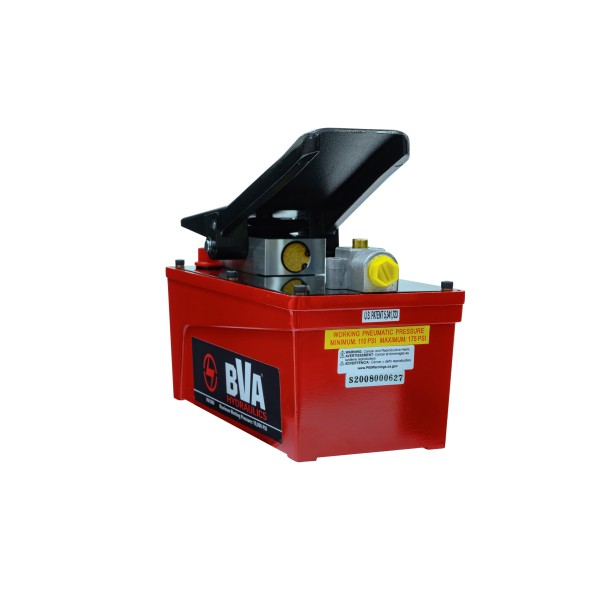

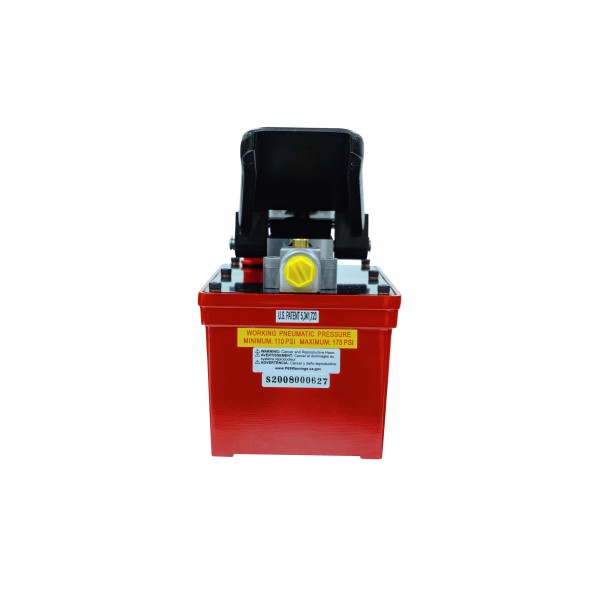

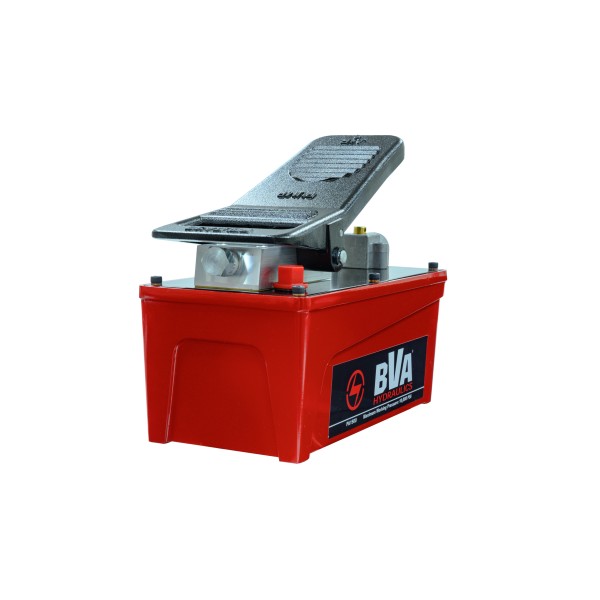

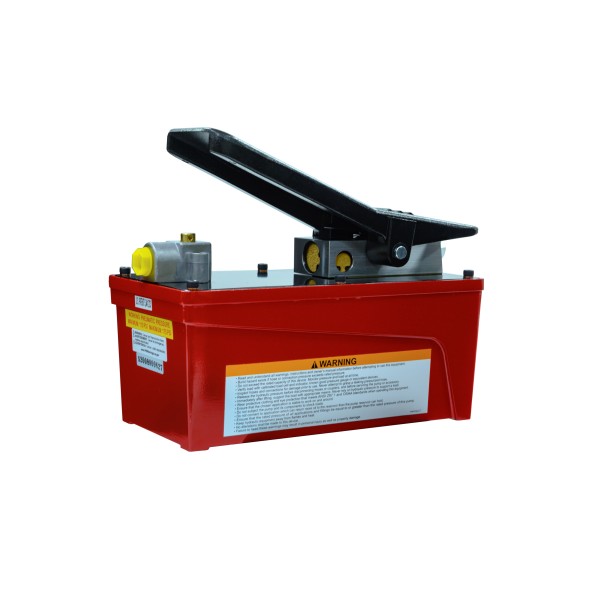

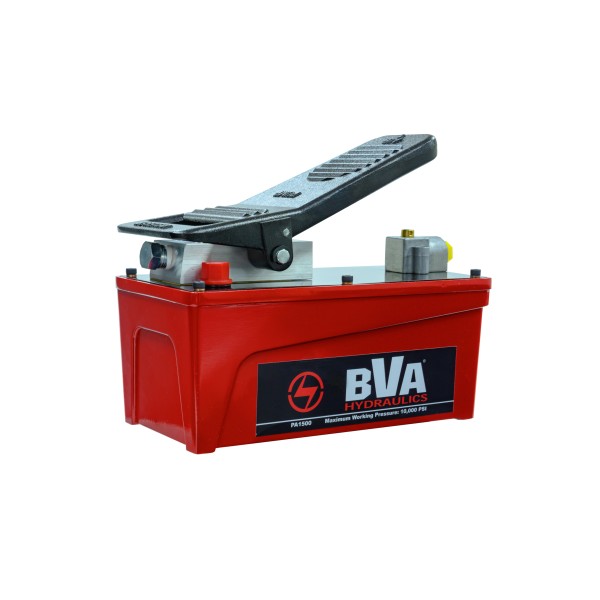

BVA Hydraulics air pump works at max. 10,000 psi (700 bar), with a compact yet powerful air turbo motor, will hold hydraulic pressure if air is disconnected. The pump equips patented bypass
Specifications
| System | Single Acting |
|---|---|
| Mode | Air Pump |
| Material | Aluminum / Steel |
| Oil capacity (in3) | 91.5 |
| Oil disp/stroke (in3) | 11 |
| Reservoir material | Aluminum |
| Air pressure range (psi) | 110-175 |
| Air consumption (in3) | 7.8 |
| Oil outlet port | 3/8"-18 NPTF |
| Air inlet port | 1/4"-18 NPTF |
| Weight (lbs) | 18.04 |
