Attributes
| Model Number | PA2000 |
|---|
Description

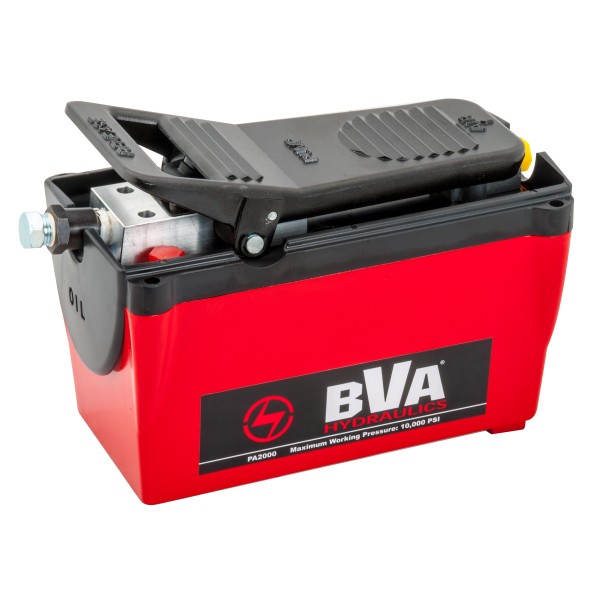

BVA Hydraulics air pump works at max. 10,000 psi (700 bar), with a compact yet powerful air turbo motor, will hold hydraulic pressure if air is disconnected. The pump equips patented bypass device protects the hydraulic system from over pumping damage, and in-line design gives less friction & longer life. Our unique dust cover on release control valve protects against contaminations. As heavy duty metal reservoirs is superior to plastic counterparts. Suggested air inlet range: 110-175 psi / 7.6-12.1 bar
Specifications
| System | Single Acting |
|---|---|
| Mode | Air Pump |
| Material | Aluminum / Steel |
| Oil capacity (in3) | 122.1 |
| Oil disp/stroke (in3) | 12¼”-12 |
| Reservoir material | Aluminum |
| Air pressure range (psi) | 110-175 |
| Air consumption (in3) | 7.8 |
| Oil outlet port | 3/8"-18 NPTF |
| Air inlet port | 1/4"-18 NPTF |
| Weight (lbs) | 20.02 |
