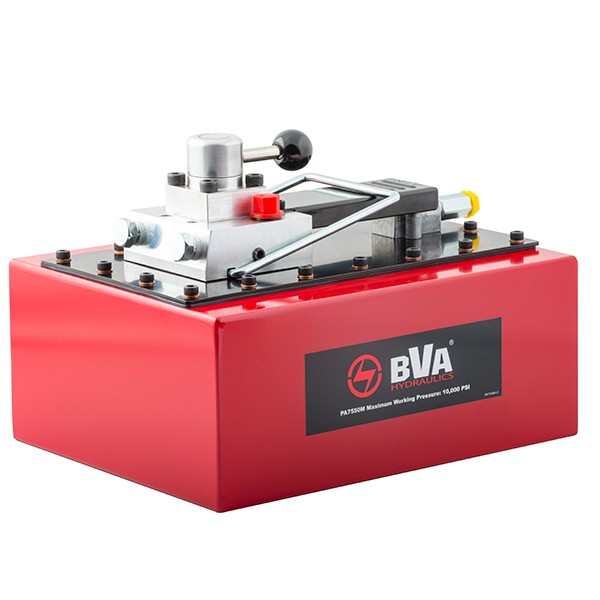

BVA Hydraulics Double Acting PA7550M 2 Speed Air Pump 460.6 Cubic Inch Reservoir, 10,000 psi (700bar)

Scraped SKU: PA7550M 2026-06-05 07:22:40

Attributes

Model NumberPA7550M

Description

BVA Hydraulics air pump works at max. 10,000 psi (700 bar), with a compact yet powerful air turbo motor, will hold hydraulic pressure if air is disconnected. The pump equips patented bypass device protects the hydraulic system from over pumping damage, and in-line design gives less friction & longer life. Our unique dust cover on release control valve protects against contaminations. As heavy duty metal reservoirs is superior to plastic counterparts. Suggested air inlet range: 110-175 psi / 7.6-12.1 bar

Specifications

SystemDouble Acting
ModeAir Pump
MaterialSteel
Oil capacity (in3)460.6
Oil disp/stroke (in3)11
Reservoir materialSteel
Air pressure range (psi)110-175
Air consumption (in3)7.8
Oil outlet port3/8"-18 NPTF
Air inlet port1/4"-18 NPTF
Weight (lbs)40.92
