Attributes
| Model Number | PE30W4N01A |
|---|
Description

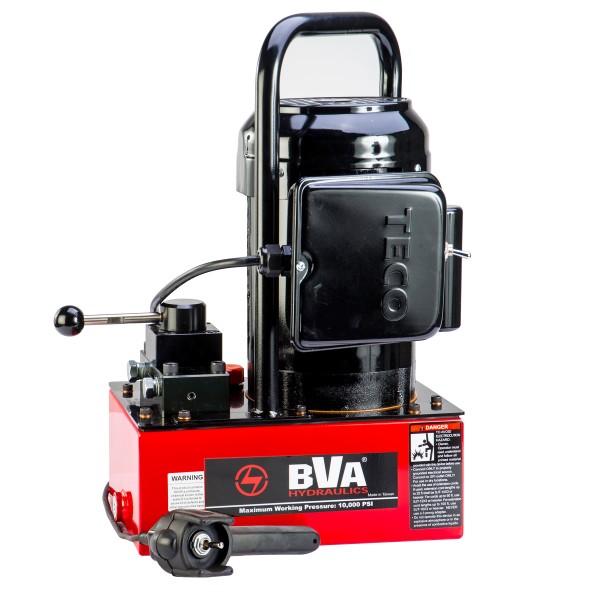

BVA Hydraulics electric pump works at max. 10,000 psi (700 bar), meets OSHA regulation for sounds (80 dBA), using 2 stages design to provide fast run up before high pressure stage. Suction strainer screen out contamination to prevent pump from damage. All hand pendants are wired 53 VAC for safety. Starts under full load.
Specifications
| System | Double Acting |
|---|---|
| Mode | Electric Pump |
| Material | Steel |
| Type | Manual / Remote |
| Oil disp/stroke (in3) | 18 |
| Reservoir material | Steel |
| Valve | Manual PUW4 |
| Valve function | Advance/Neutral /Return |
| Oil outlet port | 3/8"-18 NPTF |
| Motor (hp) | 0.5 |
| Valve Type | 4W/3P |
| Operation Type | Manual |
| Power Voltage | Manual |
| Power Phase (ph) | 1 |
| Power Frequency (hz) | 60 |
| Motor Type | Standard Electric |
| Electric Pump Resv. Capacity (Gal) | 1 |
PDF Documents
No PDF documents.
