Attributes
| Model Number | PE30DMP01A |
|---|---|
| Gtin | 047077818305 |
Description

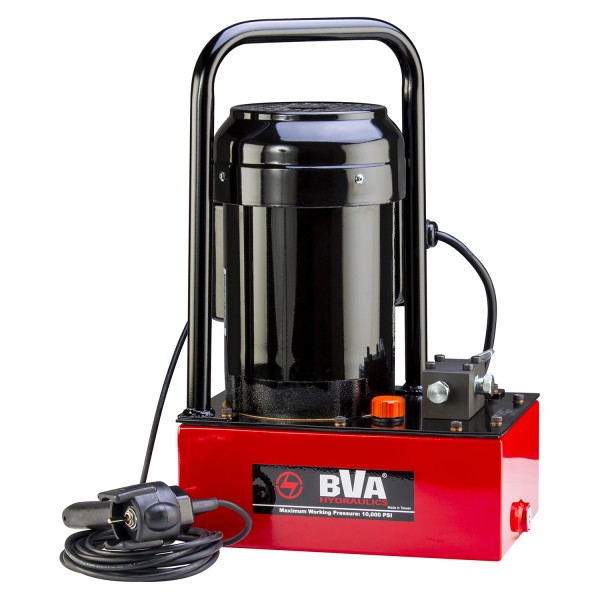

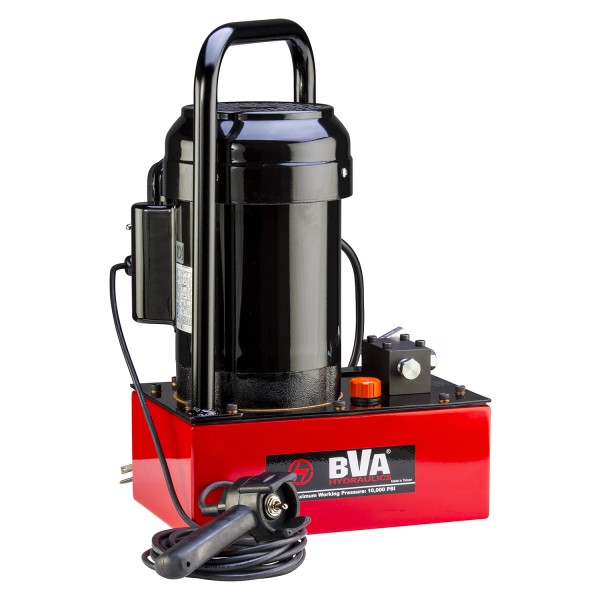

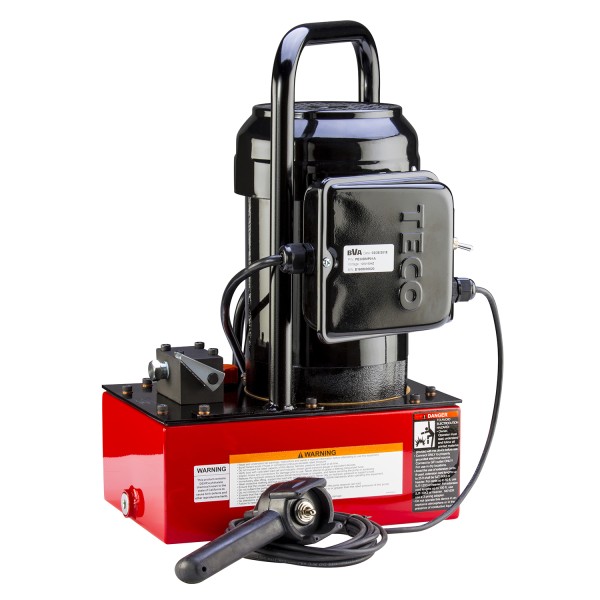

BVA Hydraulics electric pump works at max. 10,000 psi (700 bar), meets OSHA regulation for sounds (80 dBA), using 2 stages design to provide fast run up before high pressure stage. Suction strainer screen out contamination to prevent pump from damage. All hand pendants are wired 24 VDC for safety. Starts under full load.
Specifications
| System | Single Acting |
|---|---|
| Usage | General |
| Mode | Electric Pump |
| Material | Steel |
| Oil capacity (in3) | 231 |
| Oil disp/stroke (in3) | 18 |
| Reservoir material | Steel |
| Valve | Dump |
| Valve function | Advance/Return |
| Oil outlet port | 3/8"-18 NPTF |
| Motor (hp) | 0.5 |
| Weight (lbs) | 80.7 |
PDF Documents
No PDF documents.
