Attributes
| Model Number | PE40H2S02A |
|---|
Description

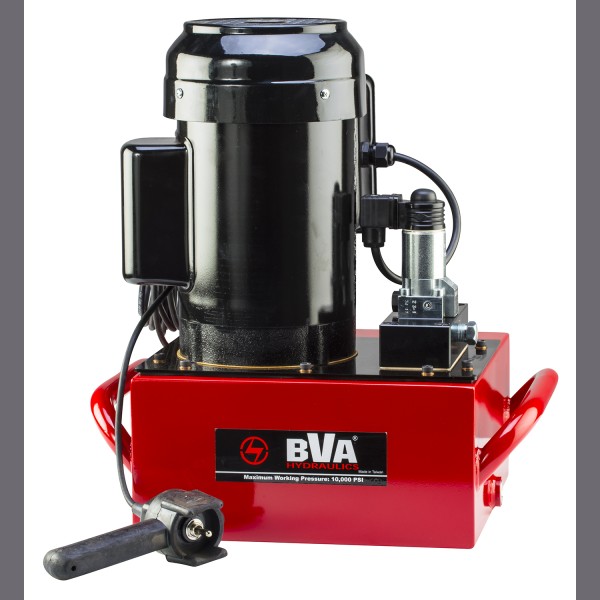

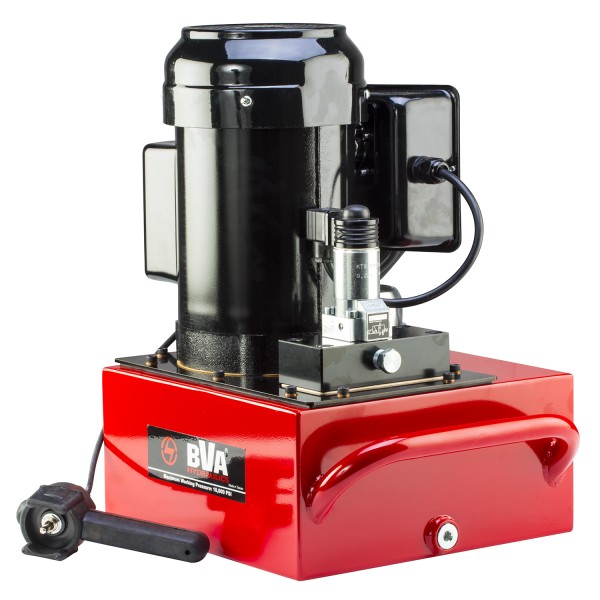

BVA Hydraulics electric pump works at max. 10,000 psi (700 bar), meets OSHA regulation for sounds (80 dBA), using 2 stages design to provide fast run up before high pressure stage. Suction strainer screen out contamination to prevent pump from damage. All hand pendants are wired 79 VAC for safety. Starts under full load.
Specifications
| System | Single Acting |
|---|---|
| Mode | Electric Pump |
| Material | Steel |
| Type | Solenoid / Remote |
| Oil disp/stroke (in3) | 37 |
| Reservoir material | Steel |

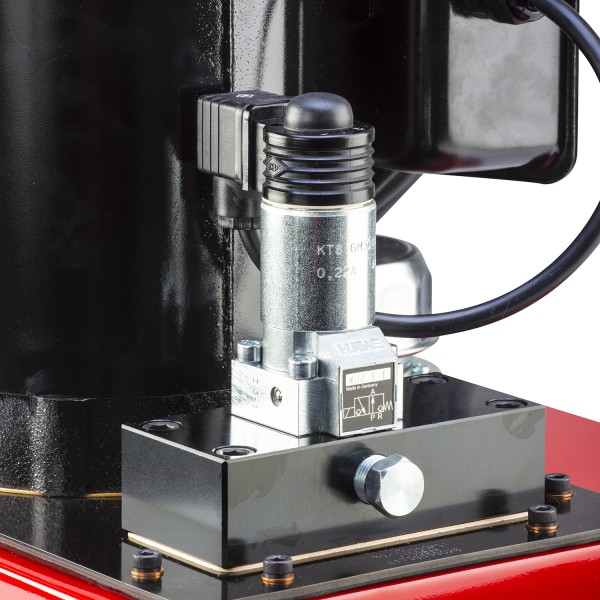

| Valve | Solenoid H2S |
| Valve function | Advance/Return |
| Oil outlet port | 3/8"-18 NPTF |
| Motor (hp) | 1 |
| Valve Type | 3W/2P |
| Operation Type | Solenoid |
| Power Voltage | Manual |
| Power Phase (ph) | 1 |
| Power Frequency (hz) | 60 |
| Motor Type | Standard Electric |
| Electric Pump Resv. Capacity (Gal) | 2 |
PDF Documents
PE30H2S01A-M0_082023 - Instruction Manual - US
Open PDF
