Pumps

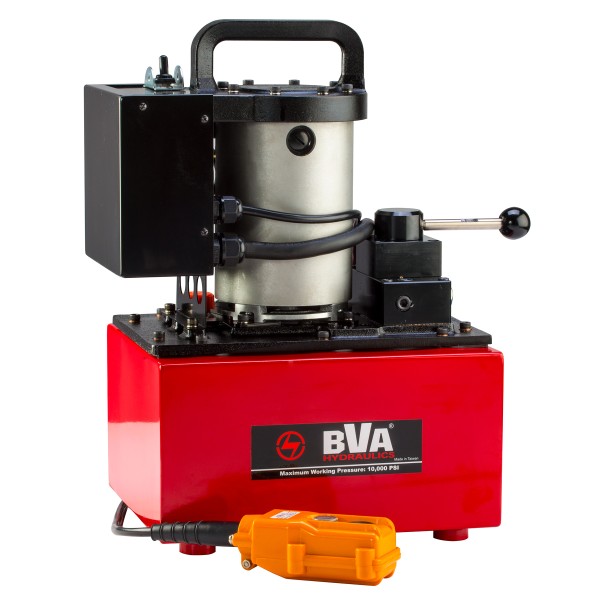

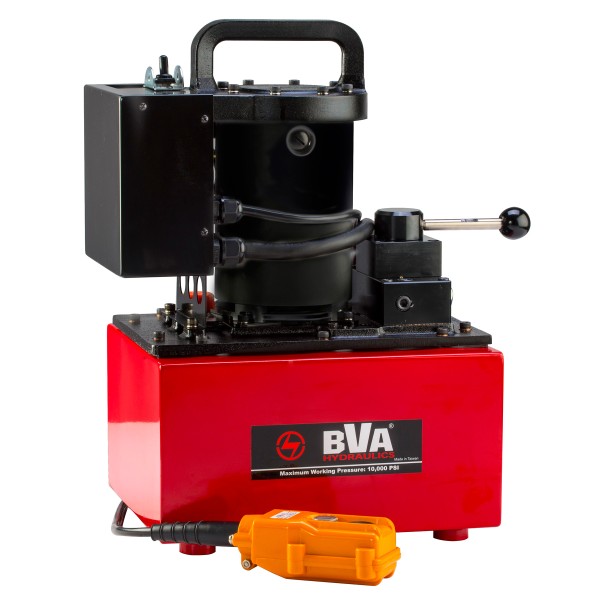

BVA Hydraulics Universal Motor Pump, PU55M4N025B, 120 VAC, 50/60Hz, 4W/3P D/A Manual Control Valve, 2.5 Gal. Usable Oil, 10,000 psi (700 bar)

Scraped SKU: PU55M4N025B 2026-06-05 07:22:40

Attributes

Model NumberPU55M4N025B
Gtin047077997406

Description

BVA Hydraulics electric pump Universal Motor, starts under full load, works at max. 10,000 psi (700 bar), meets OSHA regulation for sounds (80 dBA). Light Weight and compact design, for use with generators or extension cords. 10’, 24 VAC pendant control for safety. External pressure adjustment is available.

Specifications

SystemDouble Acting
UsageGeneral
ModeElectric Pump
MaterialSteel
Oil capacity (in3)577.5
Oil disp/stroke (in3)64
Reservoir materialAluminum
ValveManual PUW4
Valve functionAdvance/Neutral /Return
Oil outlet port3/8"-18 NPTF
Weight (lbs)63.1

PDF Documents

PU55M3N025B-M0_042021 - Instruction Manual - US Open PDF
