Attributes
| Model Number | HF1005B |
|---|---|
| Gtin | 047077520307 |
Description

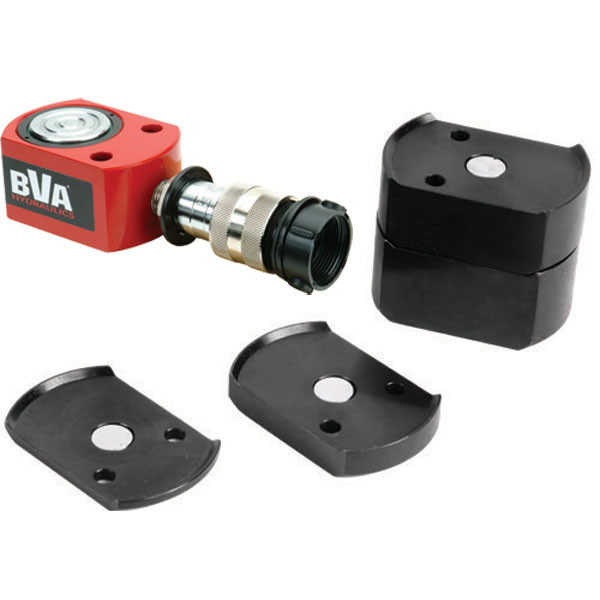

BVA Hydraulics Flat Body Cylinders work at max. 10,000 psi (700bar), designed in extremely low collapsed height for applications with minimal clearance at the lift point. All BVA cylinders equipped with a CH38F high flow coupler with dust cap.
Specifications
| System | Single Acting |
|---|---|
| Usage | Flat Body |
| Stroke (in) | 0.43 |
| Material | Steel |
| Capacity (ton) | 10 |
| Collapse height (in) | 1.69 |
| Extended height (in) | 2.12 |
| Intpressure at capacity (psi) | 8470 |
| Cylinder bore (in) | 1.73 |
| Rod Dia. (in) | 1.5 |
