Attributes
| Model Number | J72101 |
|---|---|
| Gtin | 047077795330 |
Description

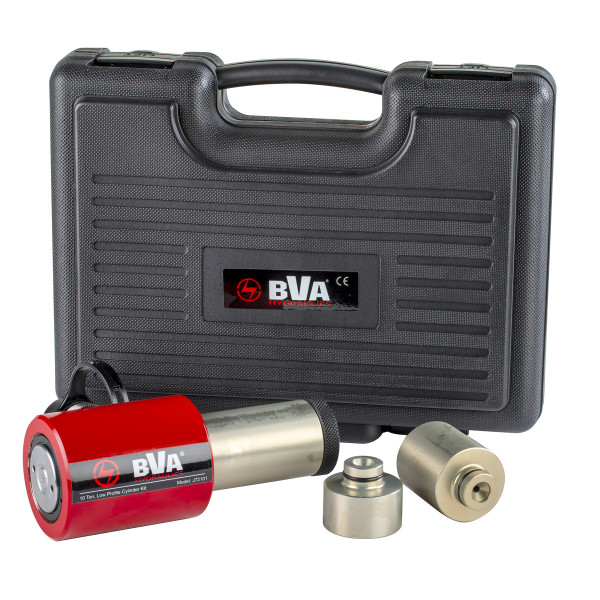

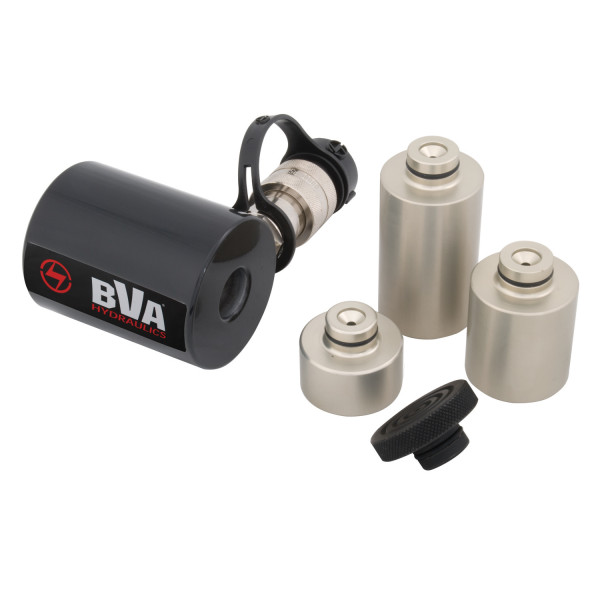

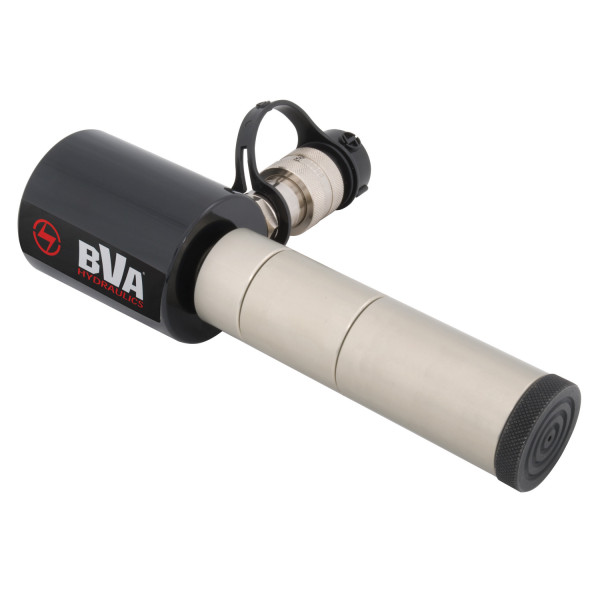

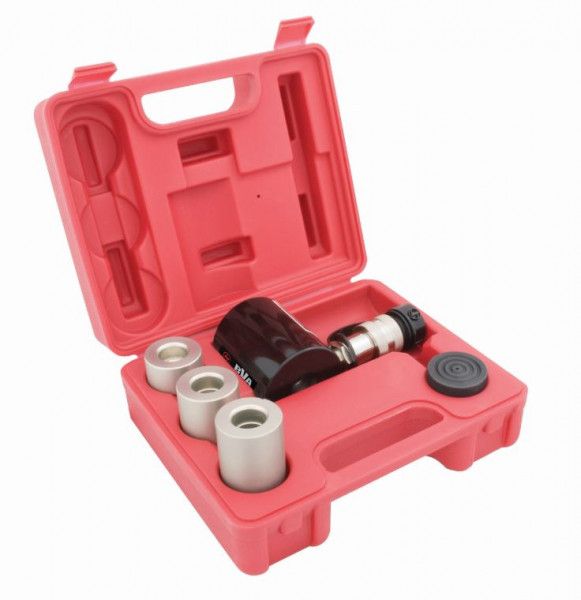

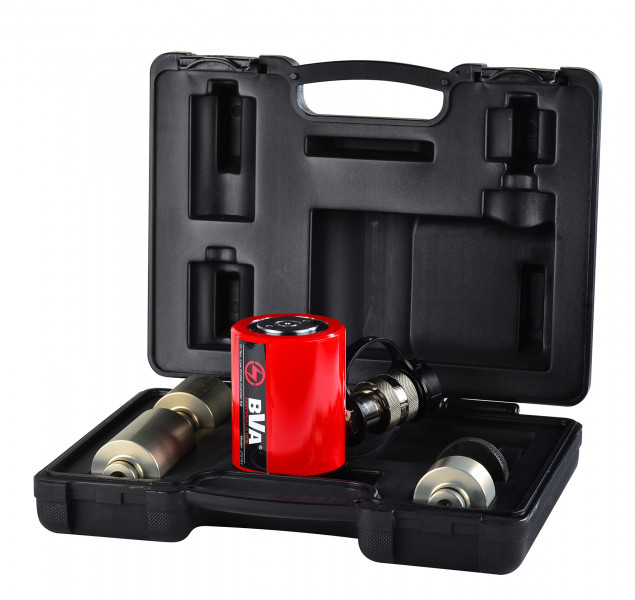

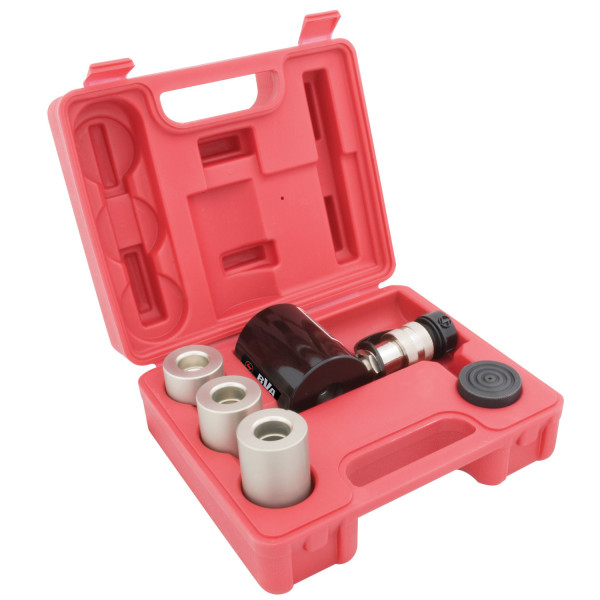

BVA Hydraulics Low Profile Cylinders work at max. 10,000 psi (700bar), designed in extremely low collapsed height for applications with minimal clearance at the lift point. All BVA cylinders equipped with a CH38F high flow coupler with dus cap.
Specifications
| System | Single Acting |
|---|---|
| Usage | Low Profile |
| Stroke (in) | 1.5 |
| Material | Steel |
| Capacity (ton) | 10 |
| Collapse height (in) | 3.48 |
| Extended height (in) | 4.98 |
| Intpressure at capacity (psi) | 8511 |
| Cylinder bore (in) | 1.73 |
| Outside Dia. (in) | 2.24 |
| Rod Dia. (in) | 1.5 |
