Attributes
| Model Number | PA15HP |
|---|---|
| Gtin | 047077981931 |
Description

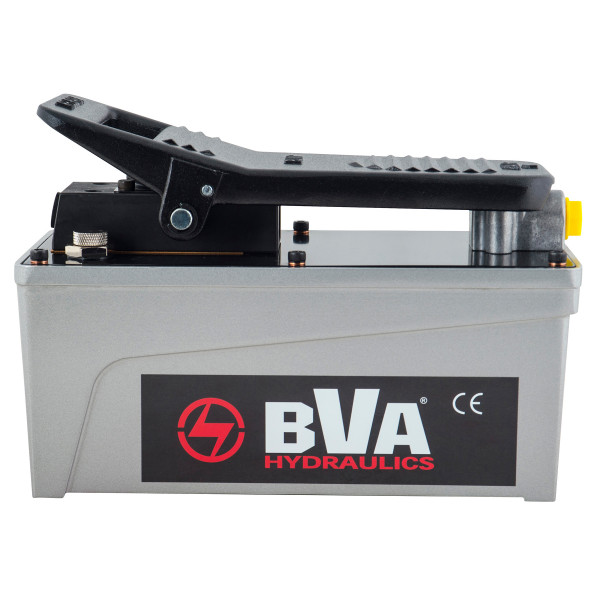

BVA Hydraulics air pump PA15HP, works at max. 21,750 psi (1,500 bar), G 1/4" Oil Outlet Port, with a compact yet powerful air turbo motor, will hold hydraulic pressure if air is disconnected. The pump equips patented bypass device protects the hydraulic system from over pumping damage, and in-line design gives less friction & longer life. Our unique dust cover on release control valve protects against contaminations. As heavy duty aluminum reservoirs is superior to plastic counterparts. Suggested air inlet range: 110-175 psi / 7.6-12.1 bar
Specifications
| System | Single Acting |
|---|---|
| Mode | Air Pump |
| Material | Aluminum |
| Oil capacity (in3) | 91.5 |
| Valve function | Advance/Hold/Return |
| Air pressure range (psi) | 110-175 |
| Weight (lbs) | 24.3 |
PDF Documents
PA15HP-M0_092024 - Instruction Manual - US
Open PDF
