Attributes
| Model Number | H0509 |
|---|---|
| Gtin | 47077510018 |
Description

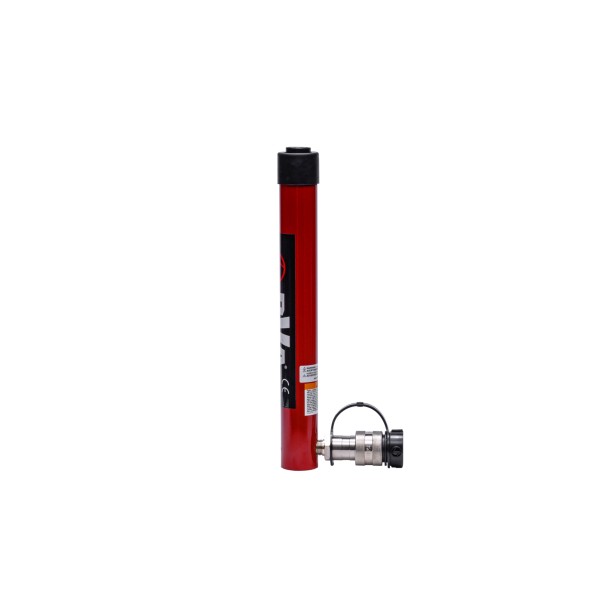

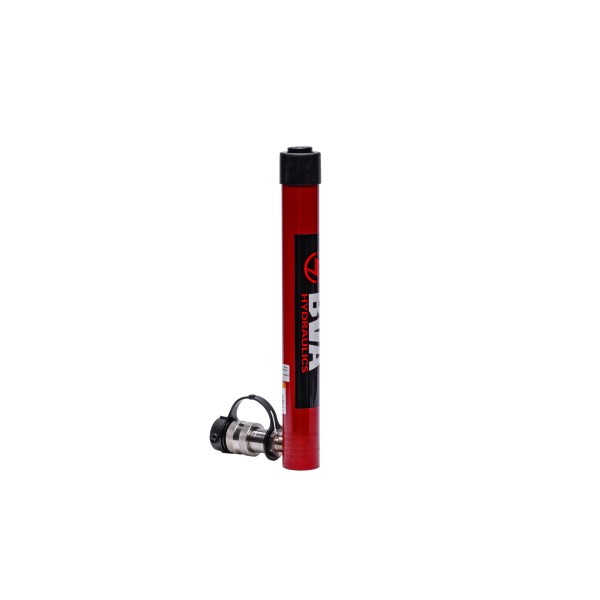

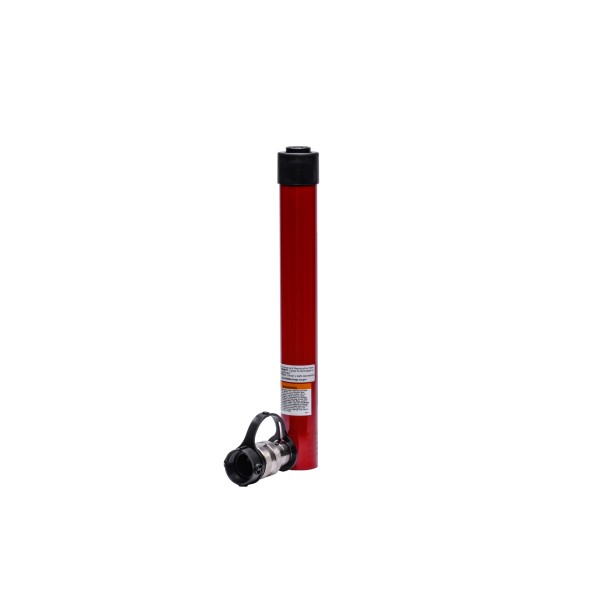

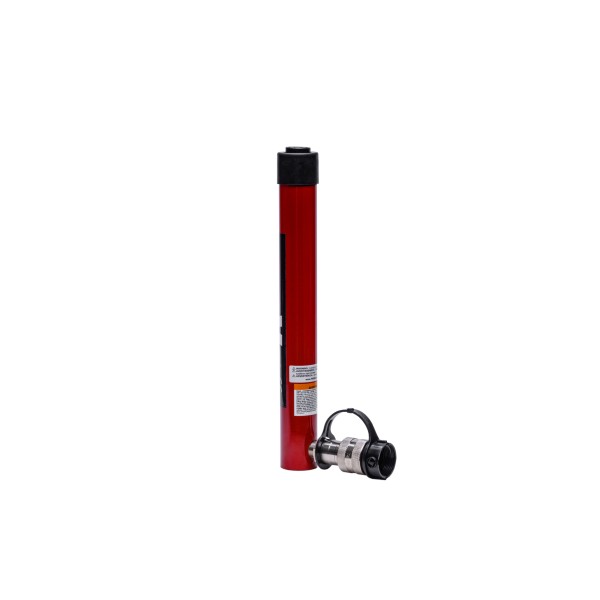

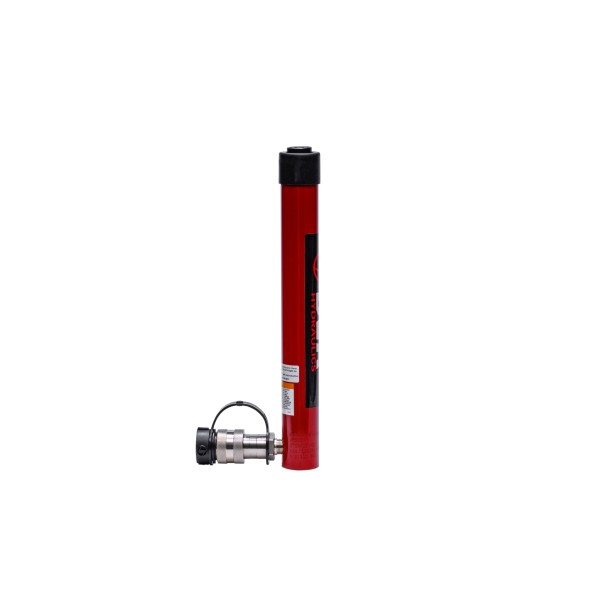

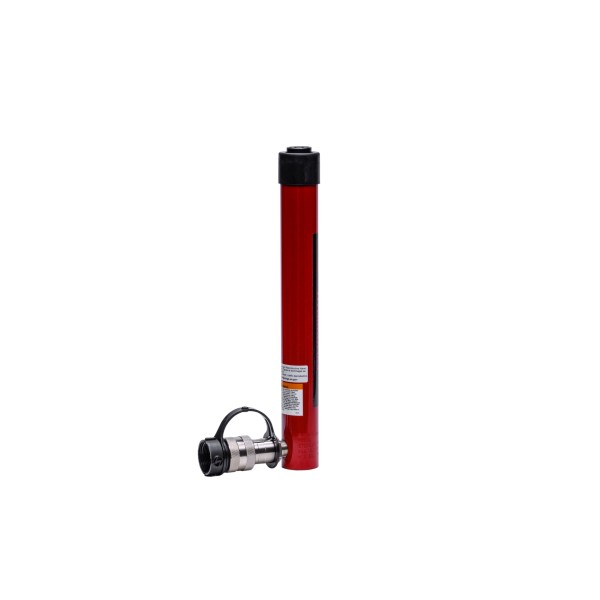

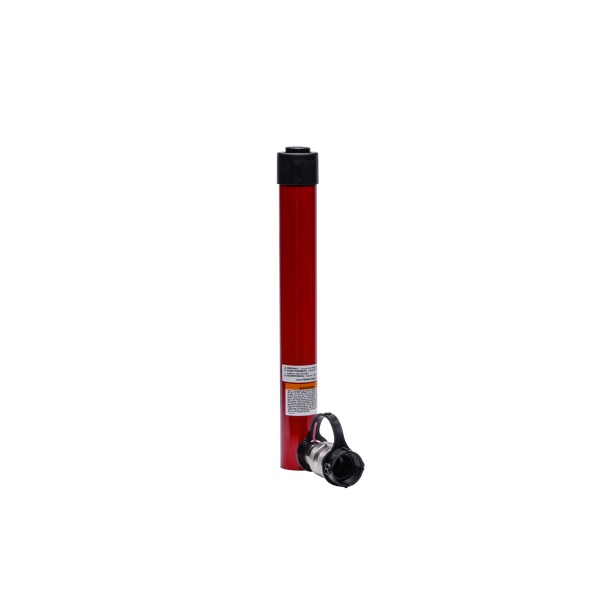

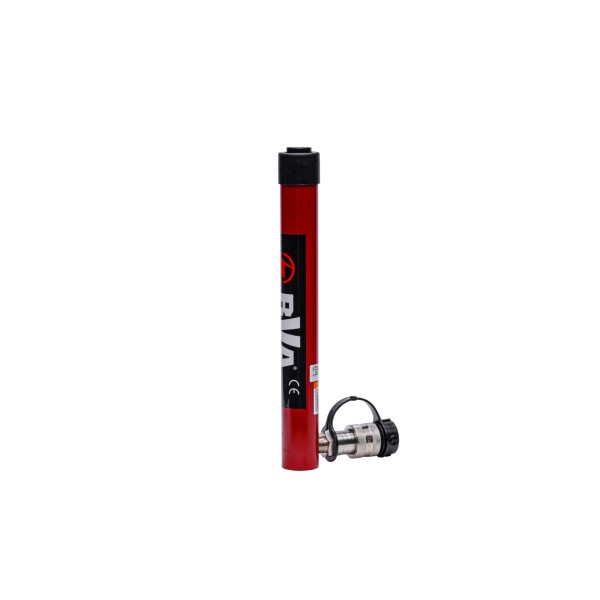

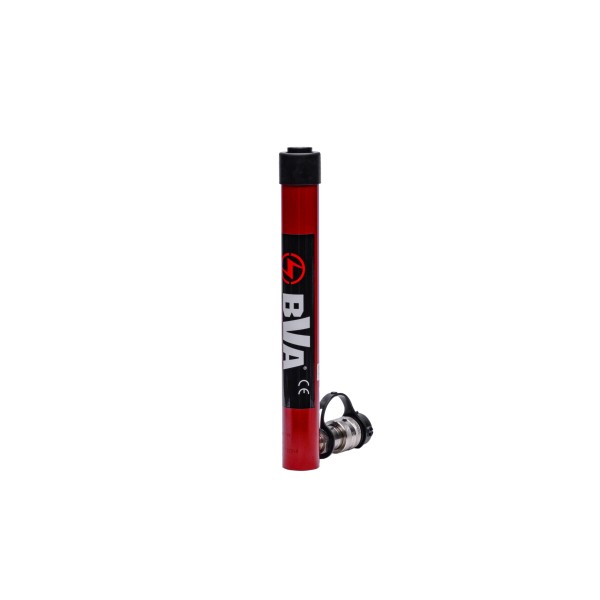

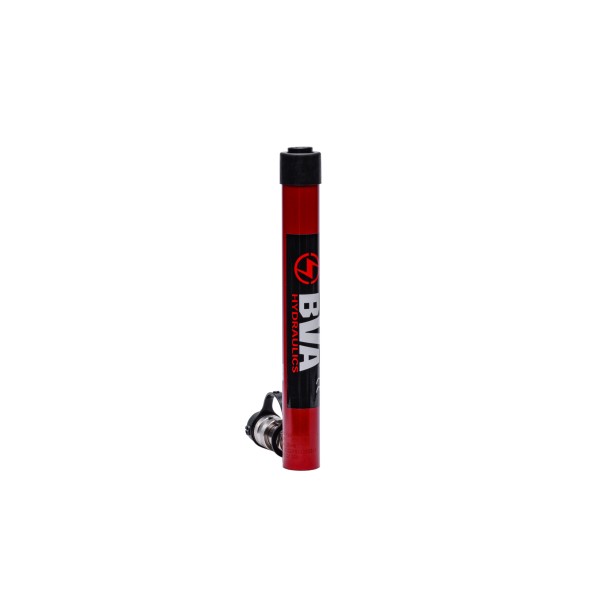

BVA Hydraulics General Cylinder works at max. 10000 psi (700 bar), manufactured in solid one-piece alloy steel body, using polyurethane U-cup seals to provide a sure seal and longer life. Our standard hard chrome plated piston rod protects against corrosion & damage; one-piece aluminum alloy bearing protects against cylinder wall damage. Collar threads and base mounting holes are for fixturing. All BVA cylinders come equipped with CH38F high-flow coupler with a dust cap for better protection. The BVA Hydraulics General Cylinder H0509 compares with the Enerpac RC59 and Power Team C59C.
Specifications
| System | Single Acting |
|---|---|
| Usage | General |
| Stroke (in) | 9 |
| Material | Steel |
| Capacity (ton) | 5 |
| Collapse height (in) | 12.75 |
| Extended height (in) | 21.75 |
| Intpressure at capacity (psi) | 10000 |
| Cylinder bore (in) | 1.12 |
| Outside Dia. (in) | 1.5 |
| Rod Dia. (in) | 1 |
| Saddle Dia. (in) | 0.98 |
| Collar Thread | 1½”-16 |
| Collar Thread Length (in) | 1.1 |
| Rod Internal Thread | ¾”-16UNF |
| Road thread length (in) | 0.63 |
| Mounting thread (in) | ¼”-20UNC |
