Attributes
| Model Number | HD20006 |
|---|---|
| Gtin | 47077795620 |
Description

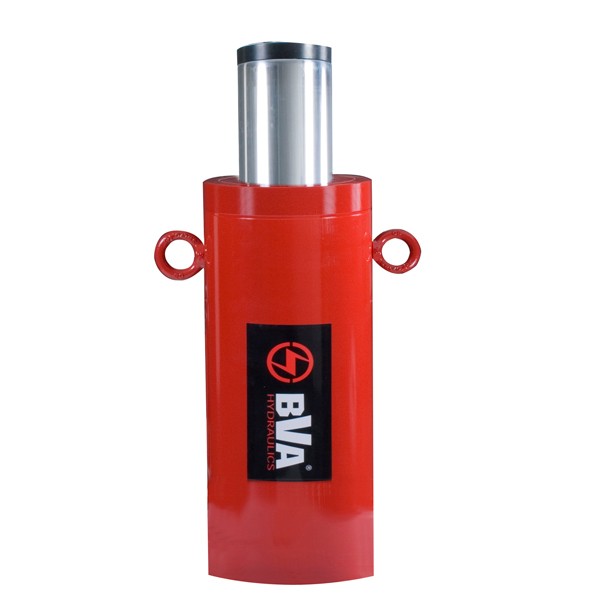

BVA Hydraulics General double acting cylinder works at max. 10,000 psi (700bar), constructed in high strength steel from gun drilled solid bar, using high grade alloy bearing for side load protection to provide longer service life, and the rod wiper seals out dirt and comtamination. Ideal for pushing and pulling application, retract under hydraulic power for fasster operation. All BVA cylinders come equipped with a CH38F high flow coupler with dust cap.
Specifications
| System | Double Acting |
|---|---|
| Usage | General |
| Stroke (in) | 6 |
| Material | Steel |
| Capacity (ton) | 200 |
| Collapse height (in) | 16.94 |
| Extended height (in) | 22.94 |
| Cylinder bore (in) | 7.5 |
| Outside Dia. (in) | 9.75 |
| Rod Dia. (in) | 5.25 |
| Saddle Dia. (in) | 5.25 |
| Collar Thread | 9¾”-12 |
| Collar Thread Length (in) | 2.13 |
| Rod Internal Thread | 2½”-12 |
| Road thread length (in) | 2.5 |
| Mounting thread (in) | 1”-8 |
PDF Documents
OM_US High Tonnage Double Acting Cylinders 200-300 Tons - Instruction Manual - US
Open PDF
